Pneumatic Mixing Pump for Drums and IBCs, 1,000l Tank

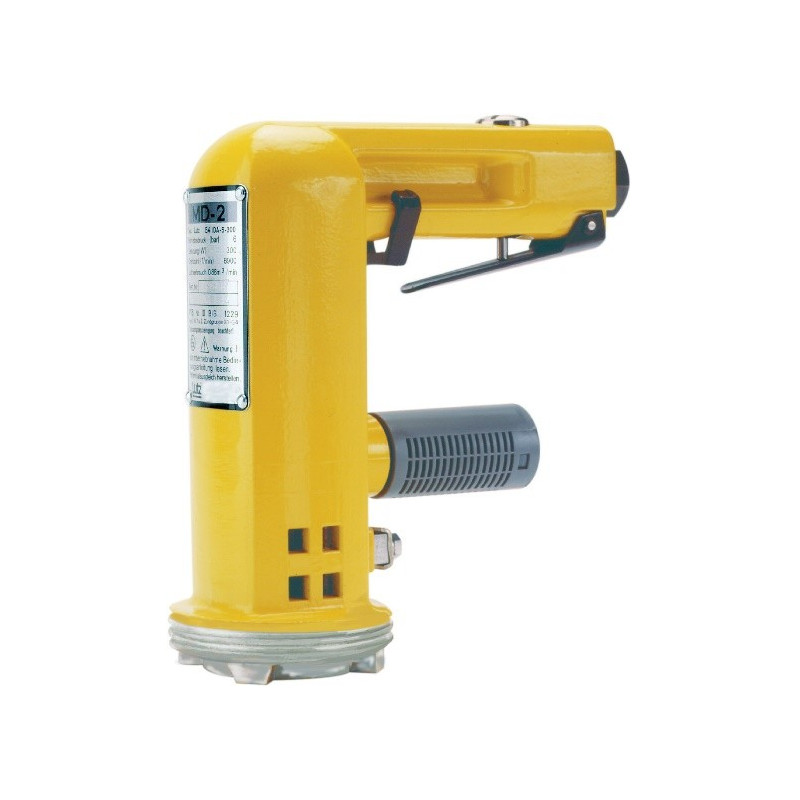

- 1 Compressed-air motor, explosion-proof, overload-resistant. 400 W at an operating pressure of 6 bar. Air consumption approximately 0.88 Nm³/min. Operating range 3 to 6 bar. Quiet operation thanks to a muffler.
The MD2 pneumatic motor features a manual actuator with a locking mechanism and complies with ATEX Ex II 2 G standards.

- 1 MP mixing pump that combines the "mixing" and "pumping" functions in a single unit. Mounts on a 200L drum (length 100 cm) or a 1000L IBC (length 120 cm). Ideal for transferring fluids that tend to separate and contain concentrated bases or acids.
Hydraulic system material: PP
Impeller material: PP
Bearings: ETFE/PTFE
Drive shaft material: Hastelloy C-4 (DIN 2.4610)
Length: 1000 mm or 1200 mm Immersion tube diameter: 50 mm Maximum liquid temperature: 50°C
Pump discharge: 1''1/4
GM thread Maximum density: 1.4 kg/dm³
Maximum viscosity: 500 cPs

- No hose, fittings, or dispensing nozzle included. To obtain these components, select the “KIT” option

For 200l drums, select a dip depth of 100 cm; for IBCs (GRVs), select a dip depth of 120 cm

1-year warranty
