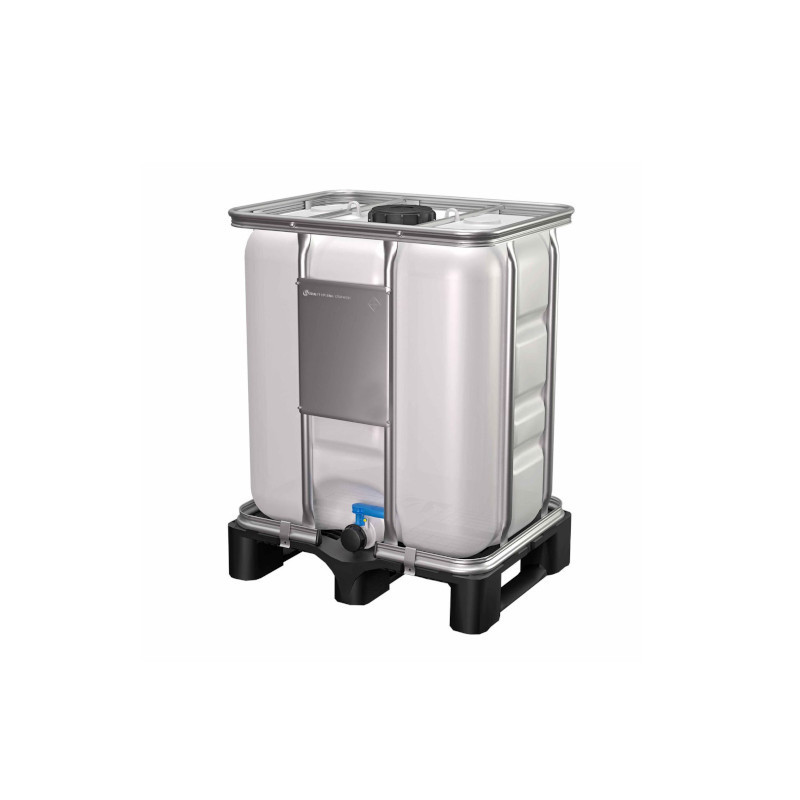

300-Liter Food-Grade IBC and ADR-Compliant Plastic Pallet

Technical specifications:
Dimensions in mm:
length 600 ^±5.0
, width 800 ^±5.0
, height 996 ^±5.0
Total weight in kg: 22 ^±6.0
Nominal volume in liters: 300
Volume to overflow in liters: 310

Composition:
Bag:
- Food-grade virgin HDPE, natural color -
Weight in kg: 7.5

Filling port:
- DN 150 filling port with S160x7 thread -
black DN 150 cover with S160x7 thread -

foam gasket - weight in kg: 0.2

Drain
: - Fixed HDPE valve (screwless, DN50 with S60x6 thread)
- PCP piston seal -
blue HDPE valve handle -

VITON handle seal -
HDPE tamper-evident clip -
heat-sealed aluminum cap - sealable
HDPE valve cap - HDPE foam valve cap seal

Drainage accessory:
DN 50 drain spout with S60x6 internal and external threads, attached to the IBC.

Metal Frame: Double-sided galvanized steel tube frame secured with clamps
; double-sided galvanized steel tube cross-brace secured with clamps
; frame/pallet assembly secured with clamps
; weight in kg: 9.5

Identification:
1 identification plate, 282x350 mm, galvanized on both sides, screwed to the front;
UN 31HA1/Y/**/D/BAM 15269-WERIT
; weight in kg: 0.43

Pallet:
600x800 plastic pallet, 2-way entry
; weight in kg: 6.5

Delivery:
2 stacked and strapped IBCs; IBCs ready for filling.

Stacking:
1 on 1 for density ≥ 1.2
