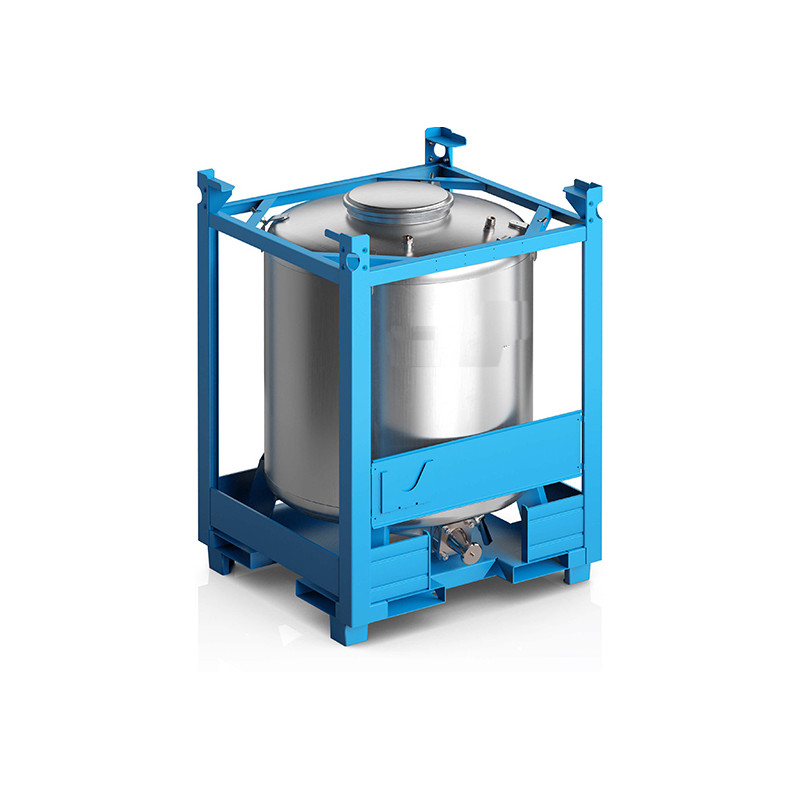

1000l Round Stainless Steel Tank, Non-Fusible, 31A/Y
GRVIRCN1000
1,000l IBC tank, UN 31A/Y certified, non-fusible, 304 stainless steel, 110x120 cm. Complies with the Lubrizol decree for the storage of flammable products
€4,640.00
Ships within: On request
UN 31A/Y certification; maximum product density 2.0; Material: polished and passivated 304 stainless steel; Capacity: 1,000 L; Stainless steel sheet thickness: 2.0mm (walls and top); Bottom: 2.5mm; Top tank equipment: DN 400 inspection hatch - Screw-on lid with 6 stainless steel eye screws and brass wing nuts; EPDM lid gasket; 1 G1" fitting with a 0.40 bar (max 0.65 bar) made of stainless steel with a Viton seal, PTFE valve seat 1 G1" fitting with a stainless steel cap, PTFE seal Drain: Sloped bottom for complete drainage; 2" welded ball valve with PTFE seal and stainless steel cap on the 1200 side; Overall frame dimensions: 1200 x 1100 x h1670 mm Galvanized steel frame, ISO 1461
Available in various capacities from 500 L to 1000 L—contact us for details 316L or 316TI stainless steel option available upon request
GRVIRCN1000
