ATEX-Compliant Heating blanket for 200l Drums

Safe heating of 200l steel and plastic drums. Can be used in explosive atmospheres, indoors or outdoors—but must be used under cover. Ideal for preventing freezing.

These ATEX- and IECEx-certified heating blankets are based on innovative technology. They are ideal for gentle heating and frost protection. For faster heating or to liquefy solids at a higher temperature, we recommend using an ATEX-certified induction heating base.

ATEX

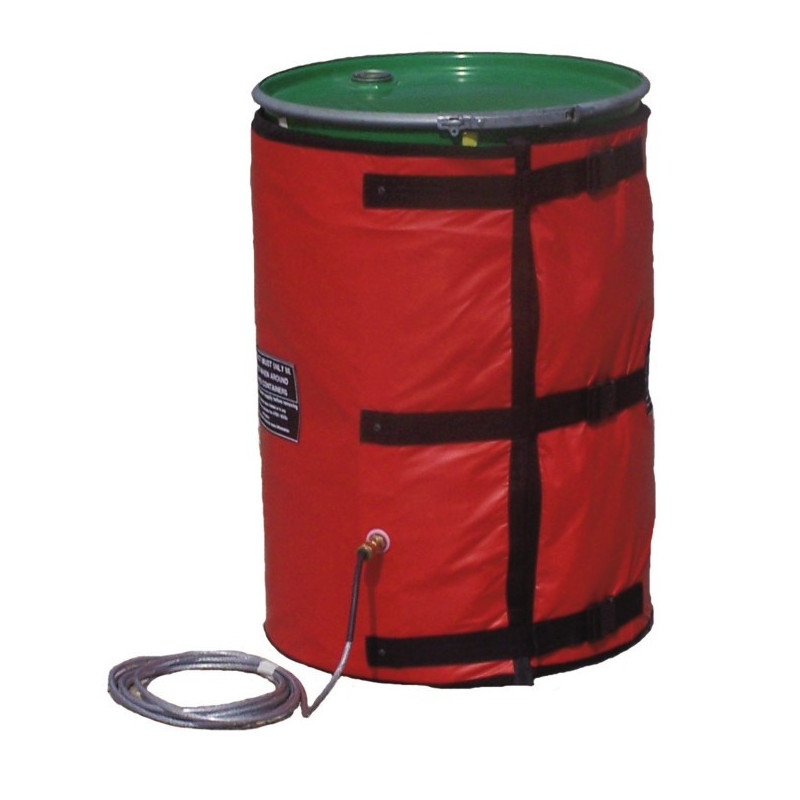

Drum Heating Blanket Made of fiberglass fabric coated with an elastomer/silicone blend and high-density fiberglass insulation. The heating element uses patented ATEX- and IECEx-certified (Zones 1 and 2) carbon-enriched
PTC-type semiconductor membrane technology.

Power: 540 watts
Supply voltage: 240 V 1-phase, 50/60 Hz AC
Class 2 device (double insulation)
Protection rating: IP 44
Weight: 9 kg
Overall length: 1950 mm
Overall height: 850 mm 5-meter power cord made of PVC sheathed with galvanized steel braid Certifications: Standards: EN 60079-0:2012, EN 60079-7:2007, EN 60079-31:2009
CML13ATEX3018X
EX II 2 G D Ex e IIC T4 Gb Ex tb IIIC T135°C Db (Zones 1 and 2)
1-year warranty
