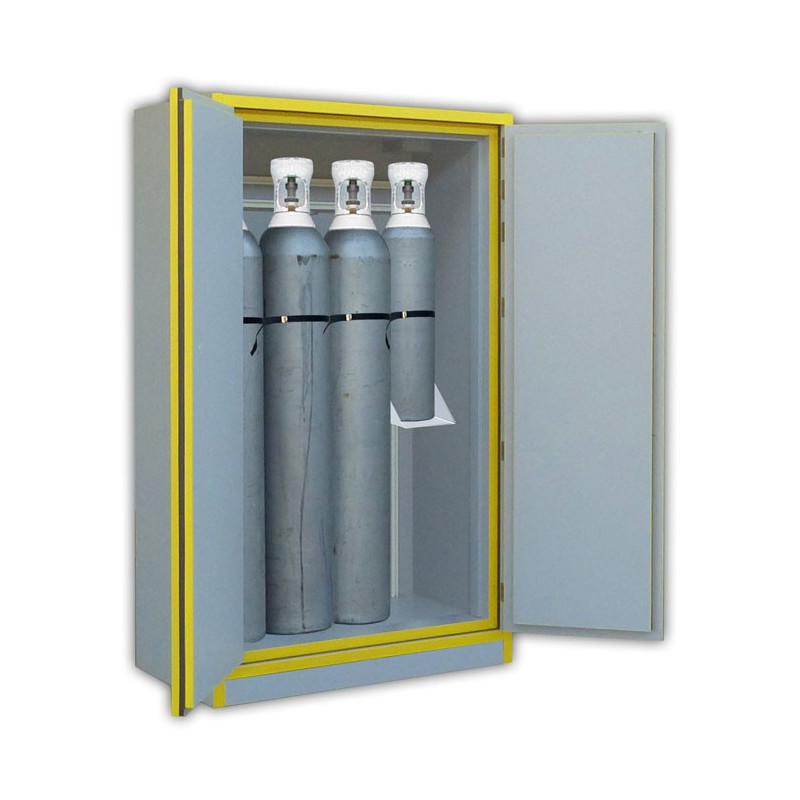

2-Door Safety Cabinet for Gas Cylinders

Compliance

- Tested in accordance with standards EN 14470-2 (04/2006) and EN 1363-1 (06/2000).
- Standardized pictograms compliant with EN 14470-2, ISO 3864, and NF X08.003, and with Directive 92/58/EEC.

Advantages

- 30-minute fire resistance according to the ISO 834 standard curve.
- Fire-tested by a French testing laboratory accredited by COFRAC, in accordance with the ISO 834 standard curve.
- Base with cover for easy movement by pallet jack when empty.

Passive Safety

- Double insulation panels offering high resistance to
chemical exposure. - Thermal insulation panels between the walls to eliminate thermal bridges.
- Light gray RAL 7035 frame with yellow RAL 1023-plated panels.
- Marked with standardized symbols.
- Grounding connection point.

Active Safety

- Ventilation openings with a 100 mm diameter vent outlet for potential connection.
- Ventilation ducts with a heat-fusing system to isolate the interior of the cabinet in the event of a fire.
- Thermally expanding door seals.
- Lockable door.
- Adjustable feet for leveling

The cabinet is sold without mounting rails for cylinders or an access ramp. These options are available as accessories
