105-minute Fire-Rated Lithium Battery Cabinet

Several sizes and versions are available; please feel free to contact us for a customized quote that includes any options you may need

- Proven 90-minute fire resistance.
- Standardized pictograms compliant with ISO 3864 and ISO 7010, and Directive 92/58/EEC.
- Reduces the risk of fire and explosion.
- Double-wall construction.
- Exterior walls made of 12/10th steel, white epoxy RAL 9010.
- Thermal insulation panels that minimize thermal bridges.
- Marked with standardized symbols.
- Grounding connection point.
- Ventilation openings with a 100 mm diameter vent outlet for potential connection.
- Ventilation ducts with a heat-fusing system to isolate the cabinet’s contents in the event of a fire.
- Thermally expanding door seals.
- Self-closing, lockable doors.

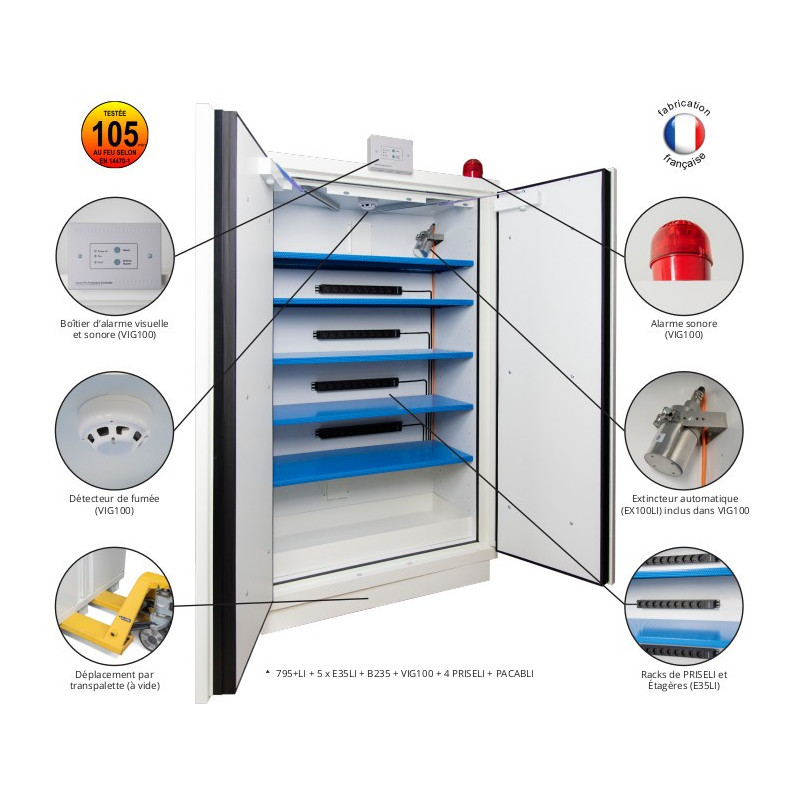

OPTIONS (as shown in the photo)
- Blue perforated shelf with a load capacity of 80 kg (parts no. E34LI and E35LI).
- Removable spill tray at the bottom (parts no. B148 and B235)
- Automatic 79°C fire extinguisher, specifically designed for lithium batteries (ref. EX100LI)
- Rack with 9 electrical outlets for charging (ref. PRISELI—must be ordered with PACABLI)
- Cable entry hole with fire-resistant cable gland (part no. PACABLI)
- Safety and alarm kit (part no. VIG100, including visual and audible alarms, control box, smoke detector, EX100LI fire extinguisher, and PACABLI)

EXTERNAL DIMENSIONS: 1950x1137x618 mm
EMPTY WEIGHT: 483 kg

Made in France
