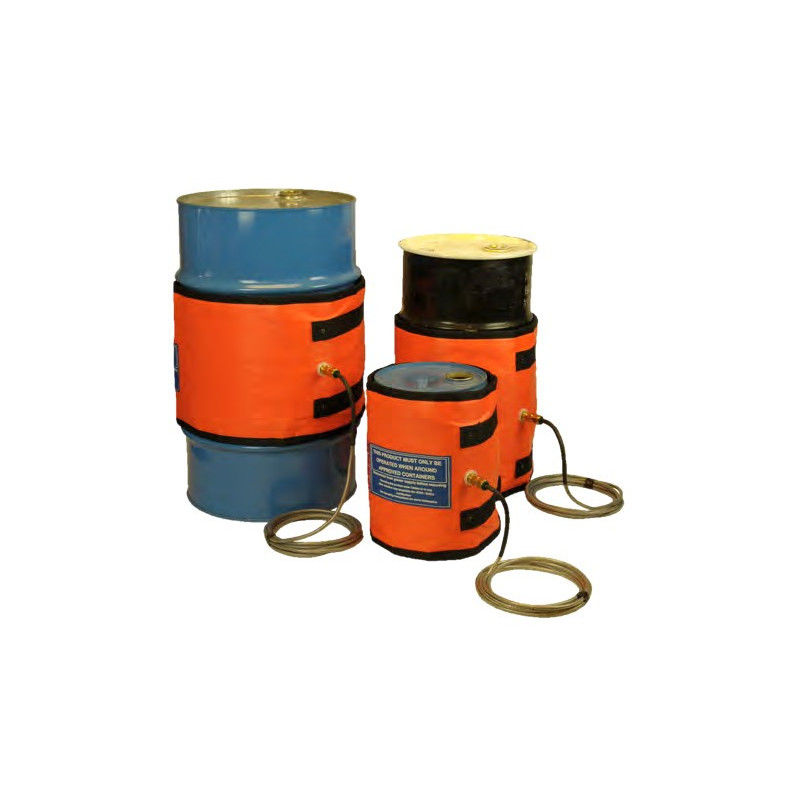

ATEX-Certified Heated Cover for 25-Liter Drum, Thermostat 0–50°C

Safe heating of 25-liter
steel and plastic drums. Suitable for use in explosive
atmospheres. Ideal for freeze

protection. These ATEX- and IECEx-certified heating blankets are based on innovative technology. They are ideal for gentle heating and freeze protection. For faster heating or to liquefy solids at a higher temperature, we recommend using an ATEX-certified induction heating base.

ATEX-Certified
Drum Heating Blanket Made of fiberglass fabric coated with an elastomer/silicone blend and featuring high-density fiberglass insulation. The heating element uses patented ATEX- and IECEx-certified (Zones 1 and 2) carbon-enriched
PTC-type semiconductor membrane technology.

Integrated ATEX thermostat 0–50°C (adjustment must be performed outside the ATEX zone)
Power: 90 watts, up to 0.4A
Supply voltage: 240 V 1-phase, 50/60 Hz AC
Class 2 device (double insulation)
Protection rating: IP 54

Overall length: 1020 mm
Overall height: 400 mm
5-meter power cable made of PVC sheathed with galvanized

steel braiding Approvals:
Standards: EN 60079-0:2012, EN 60079-7:2007
EC Certificate: CML 13ATEX3018X
II 2 G D Ex e IIC T4 Gb Ex tb IIIC T135°C Db (Zones 1 and 2)
