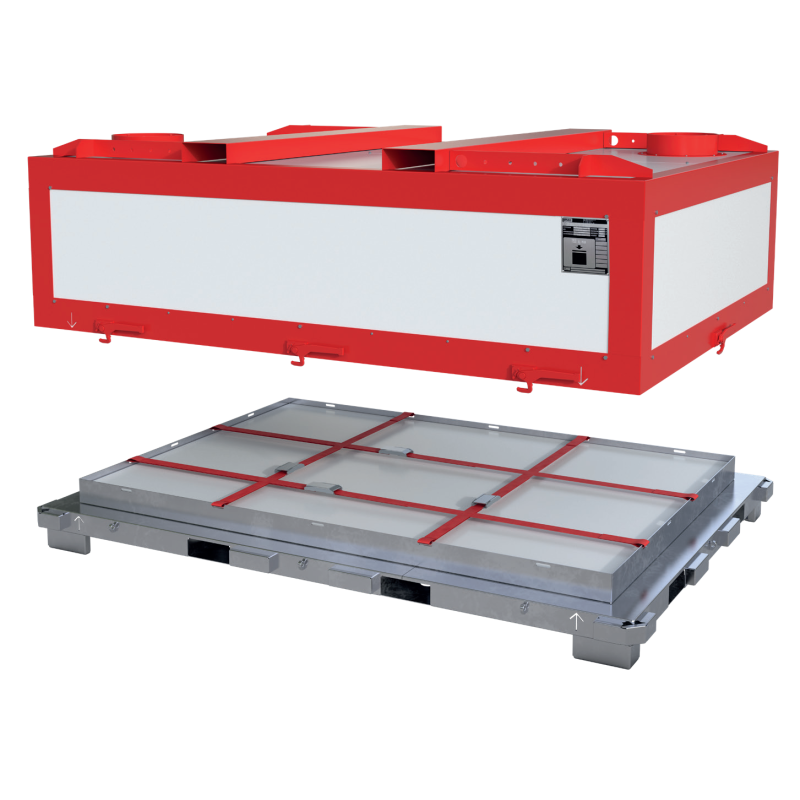

2,900l box for transporting a critically damaged lithium battery, LP906
LIP-F2900
Allows for the transport of damaged lithium batteries in accordance with ADR packaging instruction LP906:
applies to damaged or defective batteries with UN Nos. 3090, 3091, 3480, 3481, 3551, and 3552, which may rapidly disintegrate, react dangerously, produce a flame or dangerous heat release, or emit toxic, corrosive, or flammable gases or vapors under normal conditions of transport.
Suitable for UN3090, 3091, 3480, 3481, 3551, and 3552 (packing instruction LP906). Number of batteries: 1 to 72, for a maximum total power of 144.5 kWh. UN approval 50A/X/.../0/1947
Max gross weight: 2,146 kg – Empty weight: 1,146 kg
External dimensions: 3,200 x 2,000 x 1,120 mm Internal dimensions: 2,870 x 1,670 x 620 mm - Not stackable; sturdy hot-dip galvanized metal frame; 4 inlets; 2 adjustable vacuum valves; ground clearance: H 100 mm; spill tray with fire-retardant plate to collect electrolyte; 18 tie-down points, 4 tie-down straps included
Steel lid with fire-retardant panels 2 fork pockets for removing/lifting the lid 4 crane lifting eyes for removing/lift the lid
Lever latches to secure the lid to the base
Positioning aids - Anti-collision flanges Available with various RAL-colored lacquer finishes
LIP-F2900
