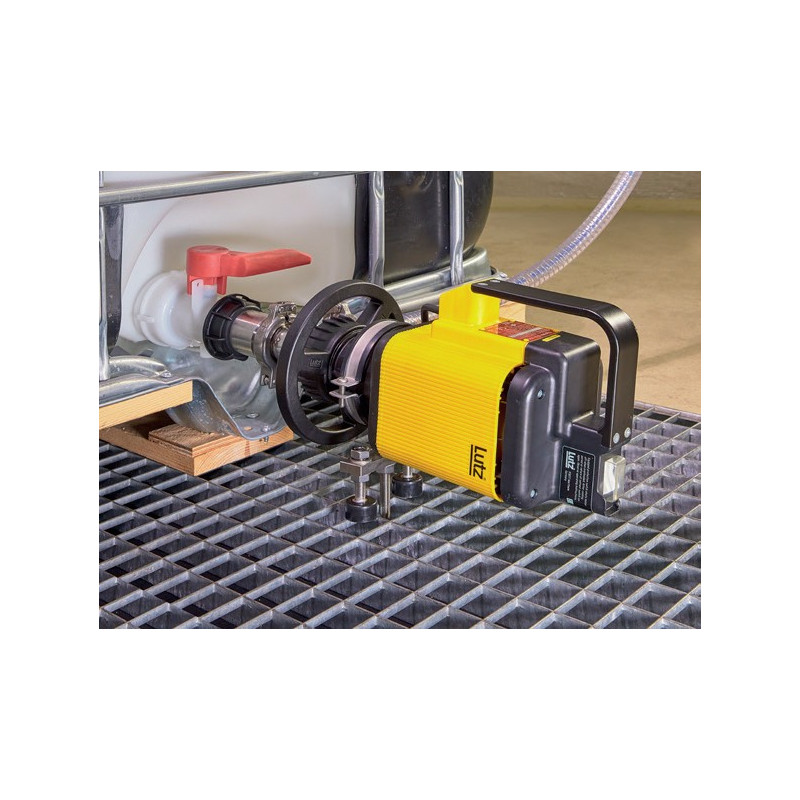

Lime Milk Pump with Drain Valve, 1,000-Liter Tank - IBC - GRV
B200LC
Pump on Drain Valve for 1,000-Liter Tank - IBC - GRV Lime
Slurry Allows lime slurry to be pumped using a mixer mounted on top of the IBC
. The lime slurry must be resuspended before pumping.
€2,515.00
Expédition sous : 1 à 2 semaines
LUTZ brand horizontal pump for 1,000-liter tanks, renowned German quality.
For draining your 1000L containers—IBCs or GRVs—from the bottom, this kit includes:
- 1 MAII-5 motor, 540–575 W, 230 V single-phase, IP54
- 1 B200 horizontal pump housing for draining 1000-liter containers (IBC - GRV)
. Mounts directly onto the valve via a nut fitting (standard S60X6)
. Ideal for transferring solvents, mineral oils, acids, alkalis, etc.
Hydraulic system material: 316 TI
stainless steel; impeller material: PTFE
; seal material: Viton
Pump discharge: 1''1/4
GM thread Max. flow rate: 225 L/min
Pressure: 13 mCE
Max. density: 1.4
Max. viscosity: 650 cPs
- 1 B200 bracket for securing the pump to the IBC structure
Pump and motor only; supplied without discharge hose or fitting (available upon request)
1-year warranty
