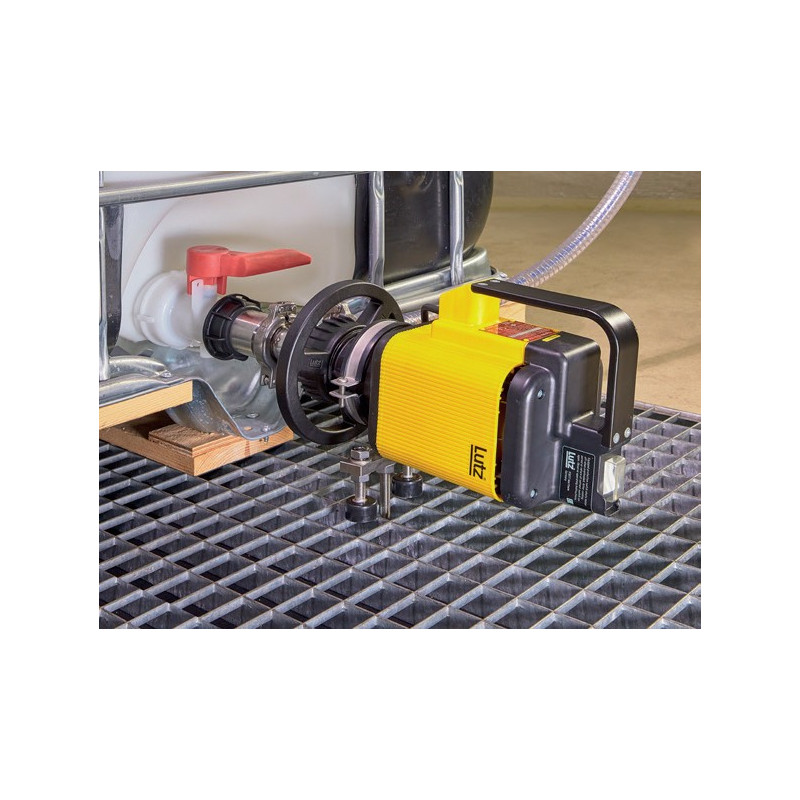

Horizontal Pump for 1000-Liter Tank - IBC - GRV, Normal Atmosphere

LUTZ 1000-liter horizontal tank pump, renowned German quality. You can choose between the pump body + motor package or the complete kit (pump body + motor + hose, nozzle, fittings, and bracket)

For draining your 1,000-liter containers—IBCs or GRVs—from the bottom, this kit includes:

- 1 MI-4 internally ventilated motor for products that do not emit corrosive vapors: Power 500
W

- 1 B200 horizontal pump body for draining 1,000-liter containers (IBCs, GRVs)
. Mounts directly onto the valve via a nut fitting (standard S60X6)
. Ideal for transferring solvents, mineral oils, acids, alkalis, etc.
Hydraulic components material: 316 TI
stainless steel; Impeller material: PTFE
; Seal material: Viton
Pump discharge: 1''1/4
GM thread Max. flow rate: 225 L/min
Pressure: 13 mCE
Max. density: 1.4
Max. viscosity: 650 cPs

- 1 B200 bracket for securing the pump to the IBC structure

- 1 chemical-resistant hose, inner material: coiled UP-E / Outer: EPDM
; Length: 2
m; Inner Ø: 19
mm; Outer Ø: 31
mm; Max. pressure: 16 bar
; Max. bend radius: 188 mm
; Operating temperature: -30°C to 100°C
; FDA- and ATEX-approved

- 1 PP/Viton dispensing nozzle and fittings
; Operating pressure: 3 bar at 20°C
; Max. viscosity: 760 mPas
; Max. flow rate: 50 L/min
; Max. temperature: 50°C
Connection: G1"1/4
Seal: Viton
