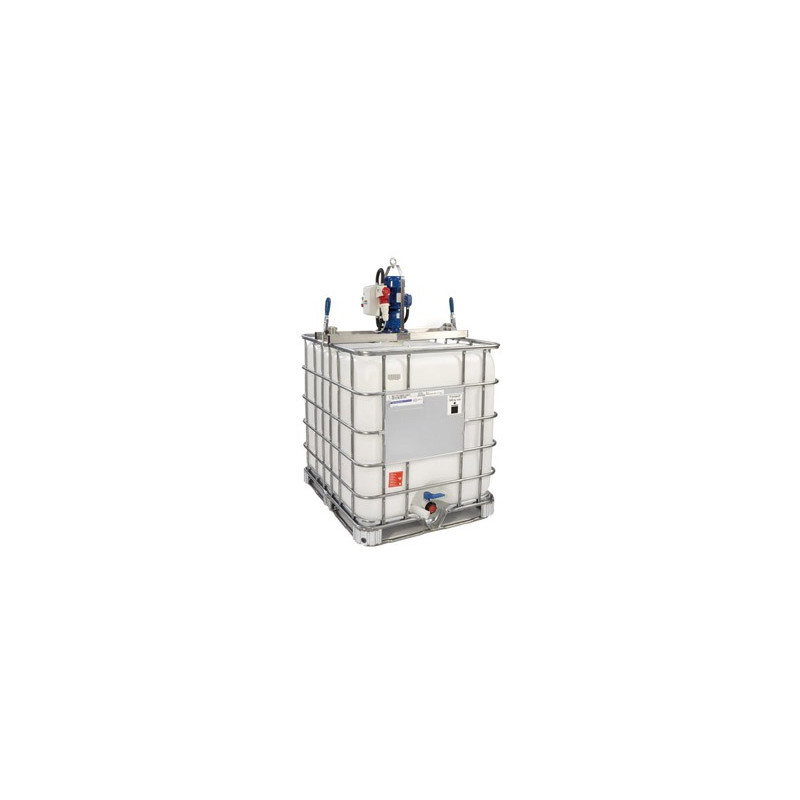

Electric LBC75 Agitator Mixer for 1,000-Liter IBC/GRV Tanks

Rotational Speed: 236 revolutions per minute, Electric motor with gearbox, IP55 rating, 0.75 kW, available in 380 V three-phase and 230 V single-phase
. Retractable propeller and shaft with a diameter of 20 mm and a length of 875 mm, made of food-grade 316 stainless steel. When retracted, the propeller is compatible with a 150 mm diameter opening (the smallest possible top opening on most 1,000-liter tanks on the market)
Maximum viscosity: 2,500 mPas–cps for normal agitation with one propeller and 5,000 mPas–cps with two propellers (the tank volume is fully agitated 2 to 5 times per minute)
. Agitation during drainage: YES
Weight: 32 kg

Safe installation and removal thanks to quick-release hooks that secure the agitator to the IBC
frame. 304 stainless steel frame with lifting ring

Available options
: - Variable-speed drive
- Forklift handling module
- Hatch for adding powder during mixing
- Integrated port for adding liquid during agitation:
- Bottom-of-tank propeller on an extended shaft for agitation at the bottom of the tank at the end of the discharge process:
- Additional retractable propeller—please contact us to confirm feasibility based on viscosity

Available accessories: 5-meter and 10-meter power extension cords

Made in England - 1-year warranty
