.jpg)
 |
1H2/X295/S
1A1/Y1.4/150/
1A2/Y150/S
4H2V/X36/S
|
4GV/X68/S
1A2T/Y350/S
1H1/Y1.4/100
4C1/Y300/S
|
 |

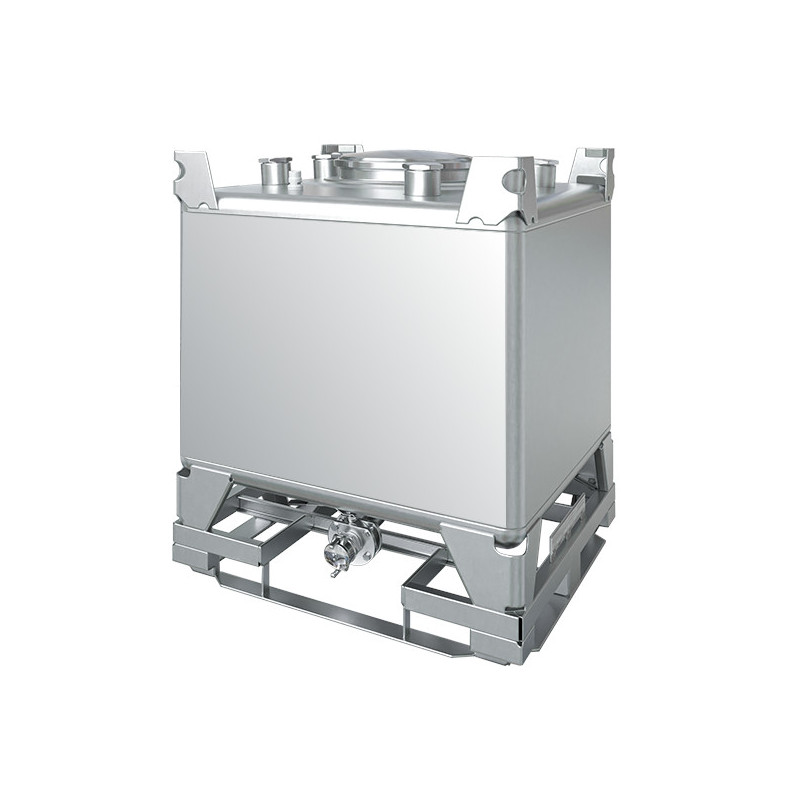

Dimensions 1150x1150xh1160 - capacity 1033
L Maximum gross weight: 2189 kg - Curb weight: 159 kg
Maximum liquid density: 2 kg/L, GEII or GEIII
DN400 opening with 6 stainless steel clamping screws and brass
wing nuts 1 vacuum valve 0.40b stainless steel with Viton seal, PTFE
seat 1 top 1" gas nozzle with stainless
steel cap Drain valve 2" with curved bottom for total
drainage; 2" welded ball valve with internal thread, PTFE seal, double fittings, and stainless
steel cap; 304 stainless steel tank, pickled and passivated, top and wall thickness 2.0mm, bottom 2.5mm
; forklift entry - Can be lifted by crane using 4 upper
anchor points; available in 316 stainless steel upon request
GRVI1000
