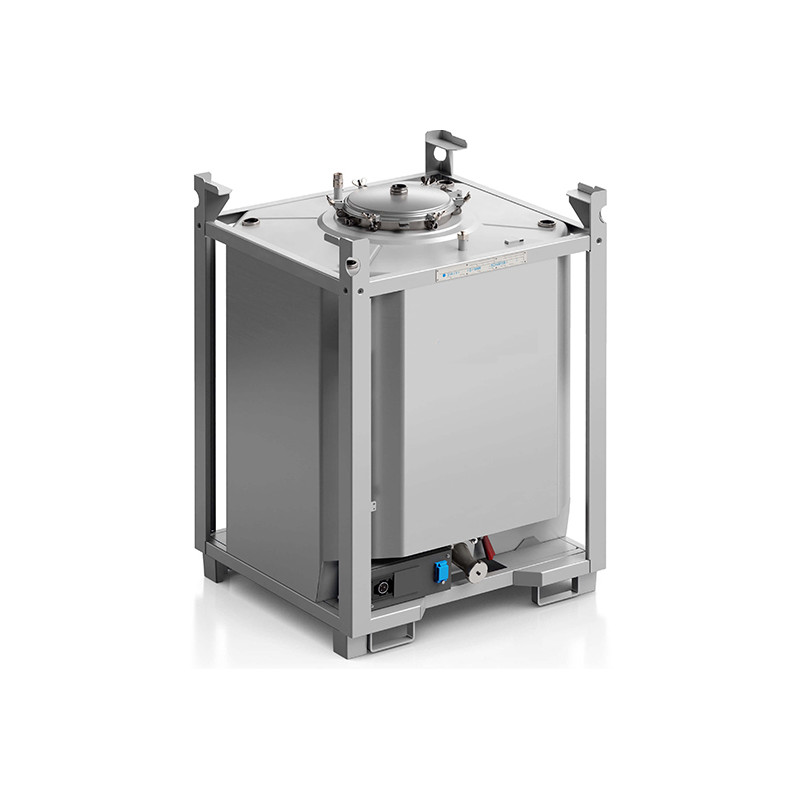

1000-Liter Insulated Stainless Steel 31A/Y Heating Tank - 2000 W

UN 31A/Y certification; maximum product density 2.0
; Material: polished and passivated 304 stainless steel; Capacity: 1,000 L
; Stainless steel sheet thickness: 2.0mm for sides and top; Bottom: 2.5mm
; Top tank equipment: DN 400
inspection hatch - Screw-on lid with 6 stainless steel eyelet screws and brass
wing nuts; EPDM
lid gasket; 1 G1" fitting with a safety valve -0.05/+0.25 bbar made of stainless
steel with a Viton seal, PTFE
valve seat 1 G1" fitting with a stainless steel cap, PTFE
seal Drain: Spherical drain with round flange, DN 80 butterfly valve (with PTFE seal)
, reducer to DN 50 threaded connection (DIN 11851) with cap nut (DIN 11851)
Overall dimensions of the frame: 1200x1100xh1670mm
Heating / Insulation:
2000-watt heating
cable on the tank—Digital heating control with touchscreen (on the left side near the outlet)
—Stainless steel housing, door with Plexiglas window—
Blue 3-pin CEE plug (on the right side near the outlet)
- Insulation between the tank and the outer casing made of perlite,
filled through four Tri-Sure ports with stainless steel plugs and PTFE
seals. Galvanized steel frame, ISO 1461
. Available in various capacities from 500 L to 1,000 L - Please contact
us. 316L or 316TI stainless steel options available upon request
