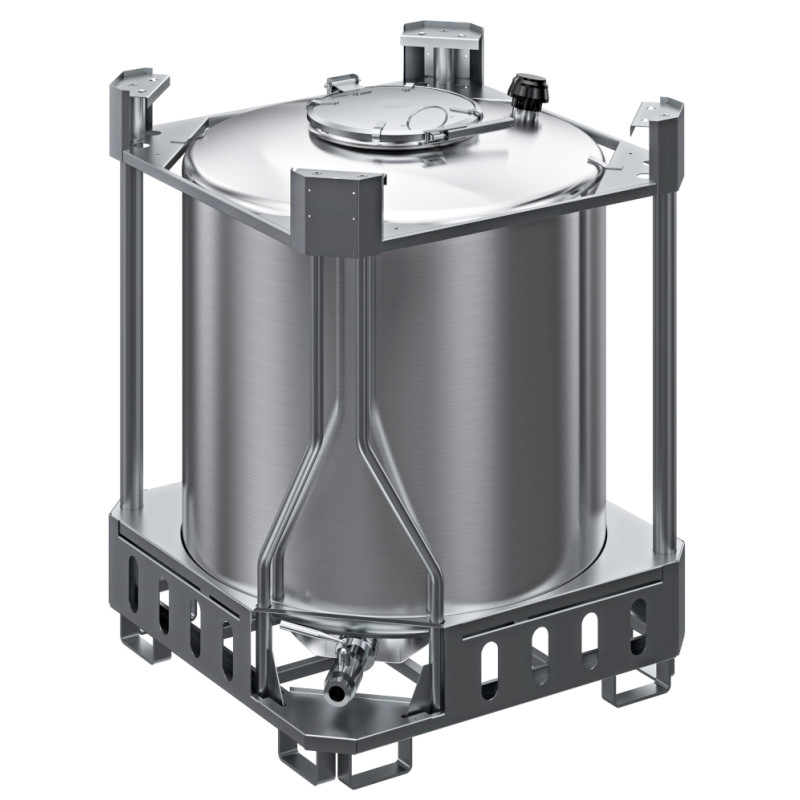

1,250-liter Stainless Steel IBC Tank, ADR 31A/Y, Side Discharge

The PLI series is a line of AISI 304 stainless steel tanks (AISI 316 available upon request)
designed for the safe storage and transport of liquids. Equipped with a quick-release lever lid,
a stainless steel safety valve, and a DN 50 drain at one corner of the base,
they ensure maximum efficiency during drainage thanks to the sump molded into the bottom.
UN, ADR, RID, and ADN compliant.

• Lid, 400 mm diameter, with quick-release lever closure and stainless steel safety valve (standard)
• Galvanized steel protective cage (stainless steel available upon request)
• Fork guides for pallet jacks or forklifts made of galvanized steel (stainless steel available upon request)
• Molded drain in the bottom for complete emptying
• Satin-finish exterior and BA-finish interior
• Drain located in a corner on one side of the base with a DN 50 flange
• Pressure relief valve: +0.05b / -0.02b
• Vapor pressure at 50°C: 110 kPa

Tank capacity at 98%: 1,330 L, diameter 1,080, height 1,250
mm Overall dimensions: 1,135 x 1,135 x 1,800 mm
