Pump Kit for CONCENTRATED Acidic or Alkaline Products, with 1,000-liter IBC Tank

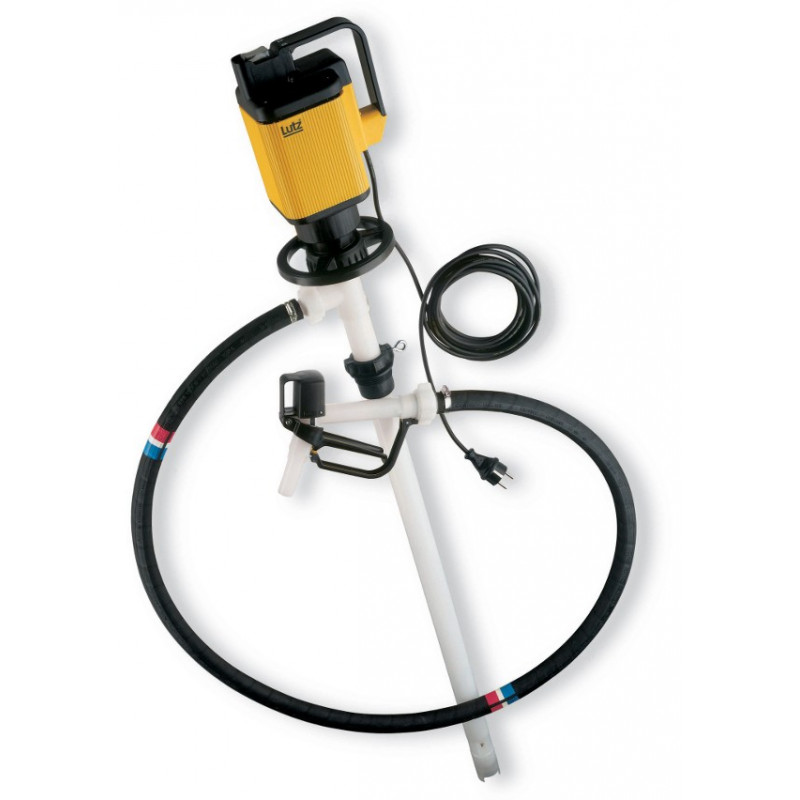

The kit consists of a MA II 3 motor, a 41-L-DL polyvinylidene fluoride (PVDF) pump housing, a PVDF dip tube (100 or 120 cm long, as desired), a HASTELLOY-C drive shaft, a Teflon impeller, 2 meters of 20-diameter PVC spiral hose and hose fittings, a PVDF dispensing gun with clamps, and a PP drum adapter. The motor can be easily disconnected from the suction/discharge tube.

For 200-liter drums, select a 100-cm immersion depth; for IBCs (GRVs), select a 120-cm immersion depth

Motor:

B3 Battery-Powered Motor for products that do not emit corrosive vapors: Battery
capacity: 24V - 4Ah - 86.4W/h
Viscosity: Max 500
mPas Discharge head: max11.8m
Max flow rate: 77 l/min
IP24
Price includes one battery and one charger MA II 3 externally ventilated

motor for products that emit corrosive vapors: The motor features a double casing that allows for cooling without direct contact between the air and the interior of the motor. Power: 460W
Max flow rate: 75 l/min
Max head: 16 m
Viscosity: Max 500 mPas

Examples of compatible products: chloric acid, chromic acid, sulfuric acid, nitric acid, hydrofluoric acid, and sodium hypochlorite
