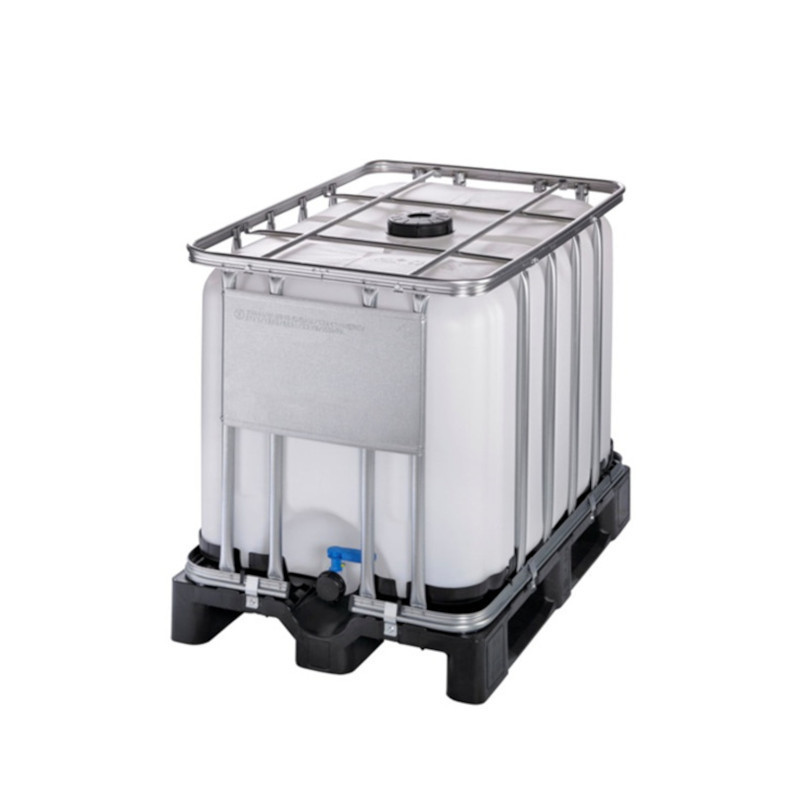

600-Liter IBC Tank, ADR-Certified for Food Use

Technical specifications:
Dimensions in mm:
length 1200 ^+/-5.0
, width 800 ^+/-5.0
, height 1013 ^+/-5.0
Total weight in kg: 44.1 ^{± 6.0}
Nominal volume in liters: 600
Volume to overflow in liters: 662

Composition:
Outer container: -
food-grade virgin HDPE - weight in kg: 11.8

Filling port: - DN
150 filling port - DN 150 cover
- foam gasket

Drainage
: - fixed valve (screwless DN50 with S60x6 thread)
- PCP piston seal -
Blue HDPE valve handle -

VITON handle seal -
HDPE tamper-evident clip -
Heat-sealed aluminum cap - Sealable
HDPE valve cap - HDPE foam valve cap seal

Drainage accessory:
DN 50 drain spout with S60x6 internal and external threads, attached to the IBC.

Metal Frame: Double-sided galvanized steel tube frame secured with clamps
; double-sided galvanized steel tube cross-brace secured with clamps
; frame/pallet assembly secured with clamps
; weight in kg: 17.4

Identification:
2 identification plates, 522x350 mm, galvanized on both sides, screwed to the front;
weight in kg: 1.9

Pallet:
1200x800 plastic pallet, 4 entry
points; weight in kg: 12.5

Delivery:
2 IBCs stacked and strapped; IBCs ready for filling.

Special feature: 10-clamp version

Stacking:
2 high by 1 wide for density ≤ 1.2
; 1 high by 1 wide for density ≥ 1.2
