1H2/X295/S
1A1/Y1.4/150/
1A2/Y150/S
4H2V/X36/S
|
4GV/X68/S
1A2T/Y350/S
1H1/Y1.4/100
4C1/Y300/S
|
![]() |
ORDERED QUANTITIES MUST BE A MULTIPLE OF THE PALLETIZATION
UNIT
| Inner Diameter (mm ) |
Capacity Liters |
Height (mm) | Palletizing |
| 574 | 220 | 900 | 8 on 114x114 |
- Body made of high-compression-resistant Kraft fiber for stacking 3 to 4 high, depending on the model-

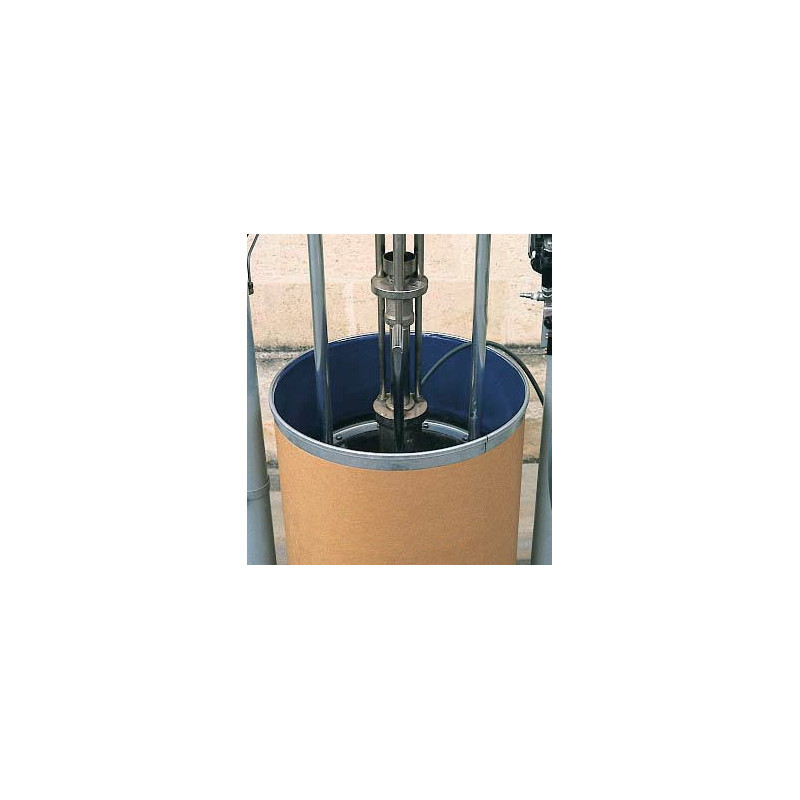

Non-stick interior coating- Perfectly smooth walls with a diameter of 574 mm, specially adapted for pumps with a follower plate and pressure plate-
Hot filling and drum heating: Withstands temperatures up to +160°C with very little heat transfer through the Kraft shell, which remains cool unlike metal. Prevents the risk of
burns- Highly mechanically resistant, the fiber drum is also lightweight, cost-effective, and customizable
. Optional:
- Removable bottom, with or without a protective liner, to recover the “cake” of paste-like product left behind by the pumping system -
Various treatments and accessories depending on the stored product to ensure chemical compatibility and prevent corrosion -
Treatment for outdoor storage
Weight: 8 kg
; Maximum
load: 250 kg; Filling temperature: Up to 160°C
; Pressure: Up to 1,000 bar
Main Areas of Application:
Hot-melt
adhesives, room-temperature-curing
sealants, silicone
sealants and elastomers, inks and varnishes
, and other products dispensed hot or cold
