ATEX-Certified Mixing Pumps for Drums and IBCs Containing Explosive Liquids

The kit consists of

: - An ME II 3 motor. The ME II 3 explosion-proof universal motor is ideal for pumping a wide range of liquids, including highly flammable and combustible fluids. Power: 460 W - ATEX Eex II 2G, II T6

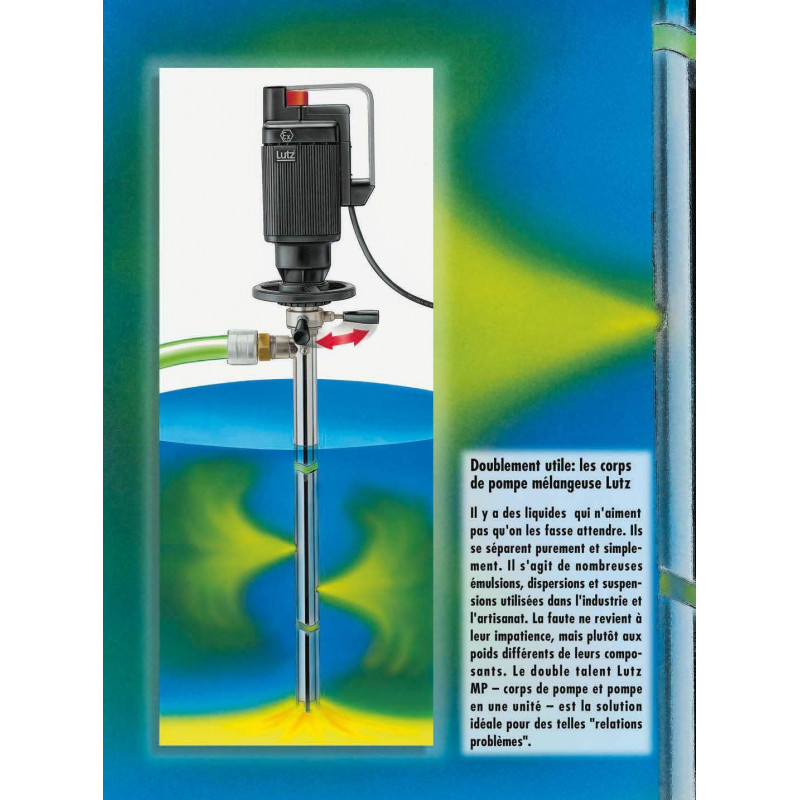

- An MP mixing pump housing that combines “mixing” and “pumping” functions in a single unit. Mounts on a 200L drum or a 1000L IBC. Ideal for transferring fluids that tend to separate and pose an explosion
hazard. Hydraulic system material: 316Ti
stainless steel. Impeller material: ETFE
. Bearings: ETFE/PTFE
Drive shaft material: 316Ti (DIN 1.4571)
Length: 1000 mm or 1225 mm
Dip tube diameter: 41
mm Maximum fluid temperature: 100°C
Pump discharge: GM 1''1/4
thread Maximum density: 1.2 kg/dm³
Maximum viscosity: 200 cPo
Weight: 3.5 kg

- 2 m of universal DN25 UPE hose, inner diameter 25 mm – outer diameter 31 mm, with 2 brass shell fittings for DN 25 (1") hose to G 1 1/4" internal thread, PP/Viton dispensing nozzle, PP drum adapter, 1 2-meter equipotential bonding cable with mounting clip

For 200-liter drums, select a dip depth of 100 cm; for IBCs (GRVs), select a dip depth of 120 cm

For liquids with a risk of explosion: such as acetone, concentrated formic acid, ethyl acetate, butyl acetate, concentrated acetic acid, nicotine, toluene, styrene, etc.
1-year warranty
