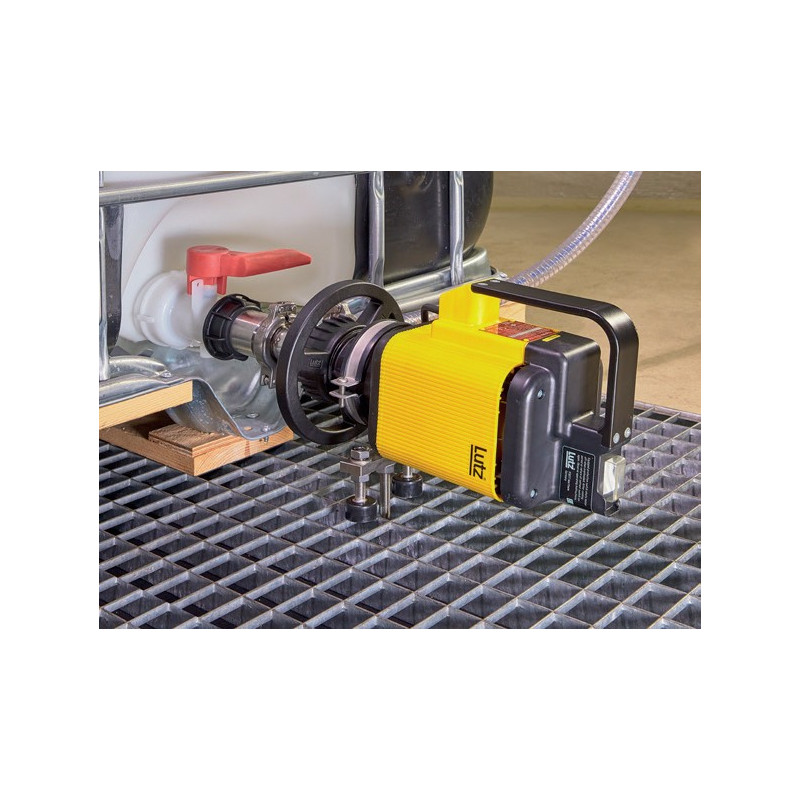

Horizontal Pump for 1000-Liter Tank - IBC - GRV for Corrosive Atmospheres

LUTZ 1000-liter horizontal tank pump, renowned German quality. You can choose between the pump body + motor package or the complete kit (pump body + motor + hose, nozzle, fittings, and mount)

For draining your 1000-liter containers—IBCs or GRVs—from the bottom, this kit includes:

- 1 MA II 3 motor with external ventilation for products that emit corrosive vapors: The motor features a double casing that allows for cooling without direct contact between the air and the interior of the motor. Power: 460W

- 1 B200 horizontal pump housing for draining 1000-liter containers (IBC - GRV)
. Mounts directly onto the valve via a nut fitting (standard S60X6)
. Ideal for transferring solvents, mineral oils, acids, alkalis, etc.
Hydraulic system material: 316 TI
stainless steel. Impeller material: PTFE
. Seal material: Viton
Pump discharge: 1''1/4
GM thread Maximum flow rate: 225 L/min
Pressure: 13 mCE
Maximum density: 1.4
Maximum viscosity: 650 cPs

- 1 B200 bracket for securing the pump to the IBC structure

- 1 chemical-grade hose, inner material: UP-E spiral-wound / Outer: EPDM
; Length: 2
m; Inner Ø: 19
mm; Outer Ø: 31
mm; Max. pressure: 16 bar
; Max. bend radius: 188 mm
; Operating temperature: -30°C to 100°C
; FDA- and ATEX-approved

- 1 PP/Viton dispensing nozzle and fittings
; Operating pressure: 3 bar at 20°C
; Max. viscosity: 760 mPas
; Max. flow rate: 50 L/min
; Max. temperature: 50°C
Connection: G1"1/4
Sealing: Viton
