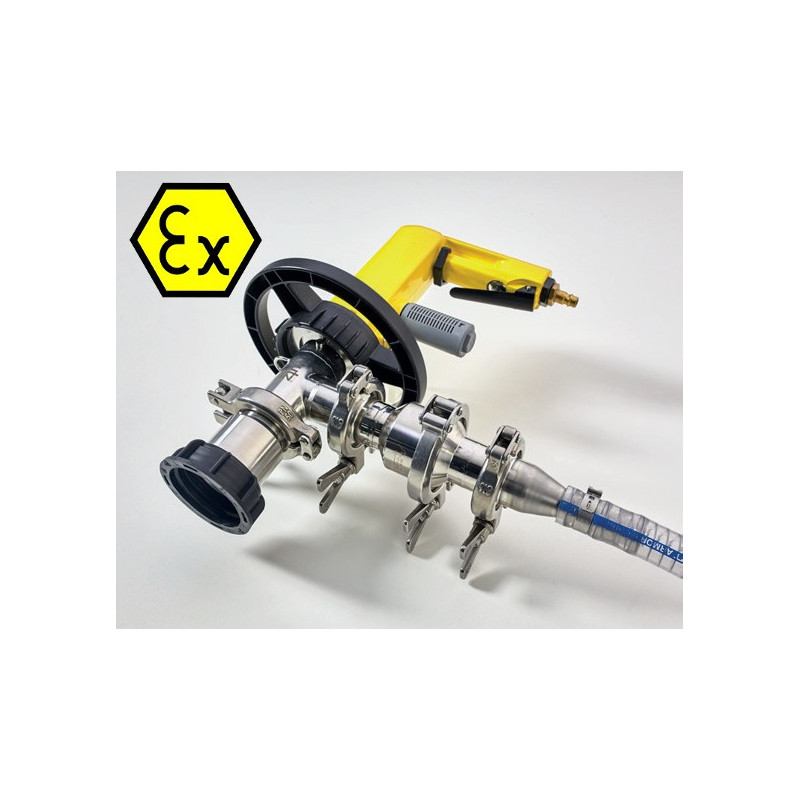

Horizontal Pneumatic Pump for 1,000-Liter Tanks - IBC - GRV ATEX

Complete kit from LUTZ, renowned for German quality

For bottom drainage of your 1000-liter containers, IBCs, and GRVs, this kit includes:

- 1 explosion-proof, overload-resistant MD2xL air-powered motor. 1000 W at an operating pressure of 6 bar. Air consumption approximately 0.88 Nm³/min. Operating range: 3 to 6 bar. Quiet operation thanks to a silencer. The MD2 air-powered motor features a manual actuator with a locking mechanism and complies with ATEX Ex II 2 G standards.

- 1 B200 horizontal pump body for draining 1,000-liter containers (IBC - GRV)
. Mounts directly to the valve via a nut fitting (standard S60X6)
. Ideal for transferring solvents, mineral oils, acids, alkalis, etc.
Hydraulic system material: 316 Ti
stainless steel. Impeller material: PTFE
. Seal material: Viton
Pump discharge: DN32 clamp with included
316 Ti stainless steel adapter Maximum flow rate: 225 L/min
Pressure: 13 mCE
Maximum density: 1.4
Maximum viscosity: 650 cPs

- 1 B200 bracket for securing the pump to the IBC structure

- 1 DN 25 UPE universal hose—2 meters
, inner diameter 25
mm, outer diameter 37
mm, max. pressure 16 bar
, max. bend radius 225 mm
, operating temperature -30°C/100°C
; compatible with 99% of transported
products; FDA-approved, EN1935/2004

- 1 stainless steel PTFE dispensing gun and fittings
Operating pressure: 3 bar at 20°C
Maximum viscosity: 760 mPas
Maximum flow rate: 50 L/min
Maximum temperature: 50°C
Connection: G1"1/4
Seal: Viton PE

- 1 2-meter equipotential cable with mounting clip
