ATEX-Certified Pneumatic Mixing Pumps for Drums and IBCs Containing Explosive Liquids

The kit consists of

: - 1 explosion-proof, overload-resistant air-powered motor. 400 W at an operating pressure of 6 bar. Air consumption: approximately 0.88 Nm³/min. Operating range: 3 to 6 bar. Quiet operation thanks to a silencer.
The MD2 air-powered motor features a manual actuator with a locking mechanism and complies with ATEX Ex II 2 G standards.

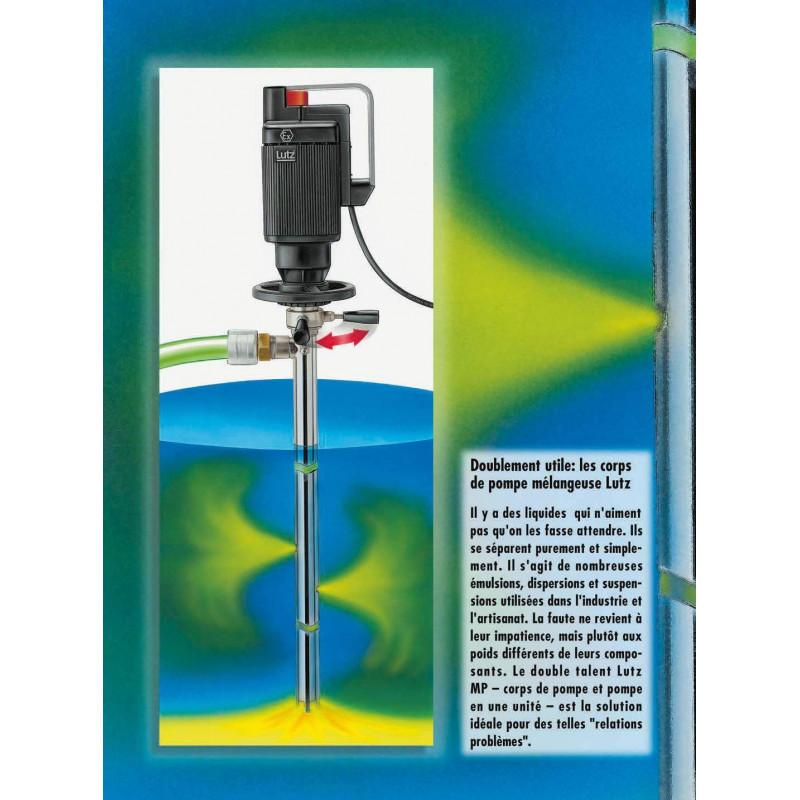

- An MP mixing pump body that combines “mixing” and “pumping” functions in a single unit. Mounts on a 200L drum or a 1000L IBC. Ideal for transferring fluids that tend to separate and are at risk of explosion
. Hydraulic system material: 316Ti
stainless steel. Impeller material: ETFE
. Bearings: ETFE/PTFE
Drive shaft material: 316Ti (DIN 1.4571)
Length: 1000 mm or 1225 mm
Dip tube diameter: 41
mm Maximum fluid temperature: 100°C
Pump discharge: GM 1''1/4
thread Maximum density: 1.2 kg/dm³
Maximum viscosity: 200 cPo
Weight: 3.5 kg

- 2 m of universal DN25 UPE hose (internal diameter 25 mm – external diameter 31 mm) with 2 brass shell fittings for DN 25 (1") hose to G 1 1/4" internal thread,

- PP/Viton dispensing gun, PP drum adapter, 1 2-meter equipotential bonding cable with mounting clip

For 200-liter drums, select a dip depth of 100 cm; for IBCs (GRVs), select a dip depth of 120 cm

For liquids with a risk of explosion: such as acetone, concentrated formic acid, ethyl acetate, butyl acetate, concentrated acetic acid, nicotine, toluene, styrene, etc.

1-year warranty
