Pneumatic Mixing Pump Kit for Drums and 1,000-Liter IBC Tanks

The kit consists of

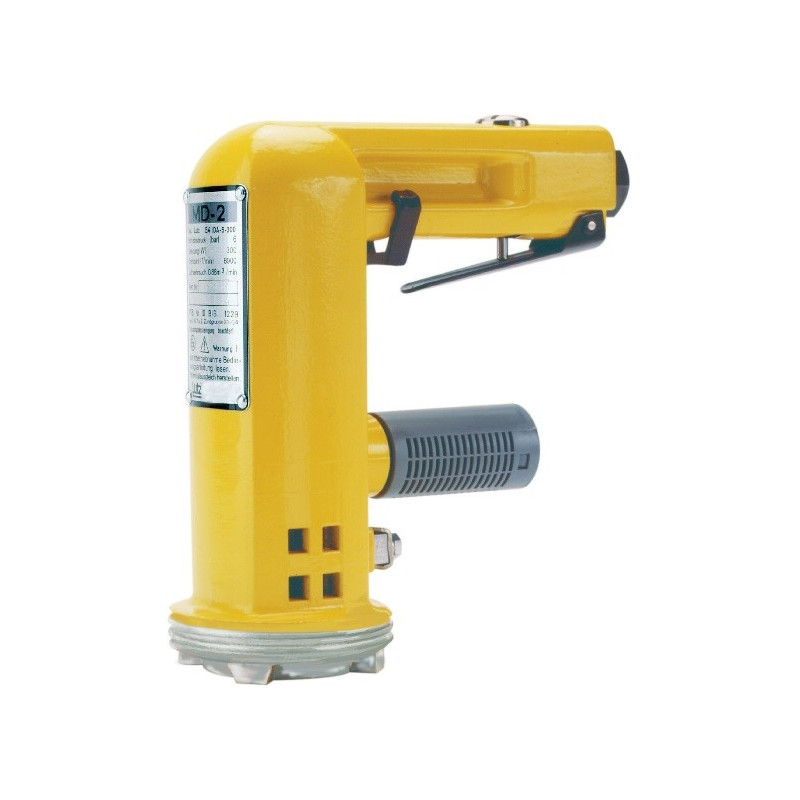

: - 1 explosion-proof, overload-resistant air-powered motor. 400 W at an operating pressure of 6 bar. Air consumption: approximately 0.88 Nm³/min. Operating range: 3 to 6 bar. Quiet operation thanks to a silencer.
The MD2 air-powered motor features a manual actuator with a locking mechanism and complies with ATEX Ex II 2 G standards.

- 1 MP mixing pump combining the "mixing" and "pumping" functions in a single unit. Mounts on a 200L drum (length 100 cm) or a 1000L IBC (length 120 cm). Ideal for transferring fluids that tend to separate and contain concentrated bases or acids.
Hydraulic system material: PP
Impeller material: PP
Bearings: ETFE/PTFE
Drive shaft material: Hastelloy C-4 (DIN 2.4610)
Length: 1000 mm or 1200 mm
Dip tube diameter: 50
mm Maximum liquid temperature: 50°C
Pump discharge: GM 1''1/4
thread Maximum density: 1.4 kg/dm³
Maximum viscosity: 500 cPs

- 2 m of universal DN25 UPE hose (inner diameter 25 mm, outer diameter 31 mm) with 2 brass shell fittings for DN25 (1") hose to G 1 1/4" internal thread,

- PP/Viton dispensing nozzle, PP drum adapter,

For 200-liter drums, select a dip depth of 100 cm; for IBCs (GRVs), select a dip depth of 120 cm
