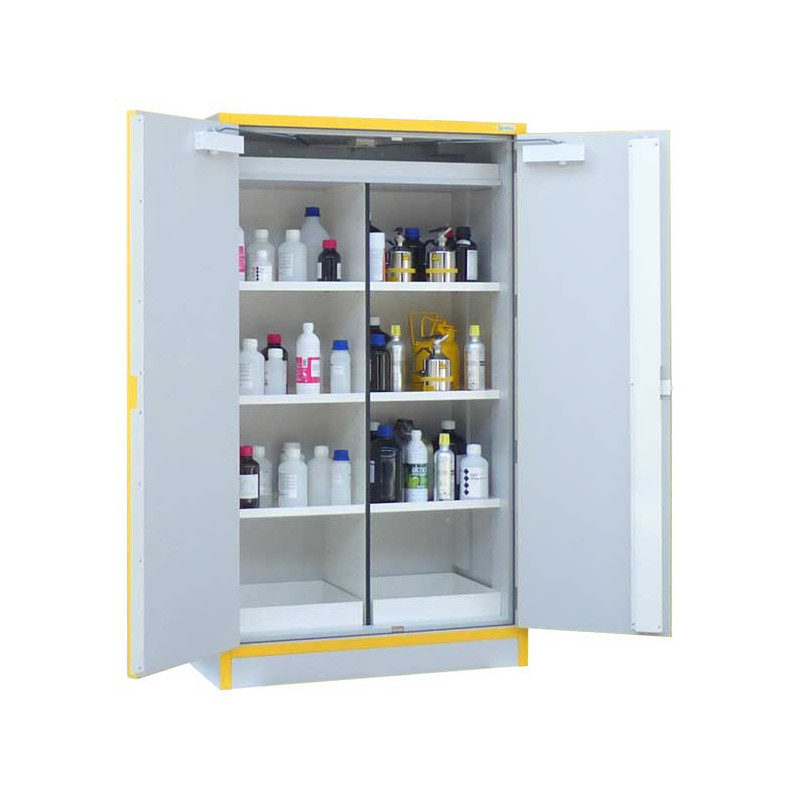

30-minute fire-resistant safety cabinet for corrosive products

• Constructed from insulated panels, highly resistant to chemical exposure.
• Light gray frame with yellow-plated panels.
• Tested and certified to standards EN 14470-1, EN 1363-1, and FM 6050.
• 30-minute fire resistance according to the ISO 834 standard curve.
• Standardized pictograms compliant with ISO 3864, NF X08.003, Directive 92/58/EEC, EN 14470-1, and FM specifications.
• System to hold doors open with automatic closure in the event of a fire (heat-activated fuse that
triggers at 43°C). Key-lockable doors.
• DN100 connection flange positioned above the cabinet for mechanical ventilation (optional).
• Adjustable feet for leveling.
• 3 height-adjustable steel containment shelves.
• Removable steel containment pan on the floor (grating optional).
• Grounding connection point.

Optional features depending on the concentration of acids and bases:
- PVC protective lining for
shelves-
PVC spill tray- Mechanical ventilation and filtration
—CONTACT

US FOR DETAILS EXTERNAL DIMENSIONS: 1980 x 1115 x 550 mm
INTERNAL DIMENSIONS: 2 compartments (1 acid / 1 base) 1580

x 490 x 410 mm STORAGE CAPACITY: 240

L EMPTY WEIGHT: 232 kg

Made in France
