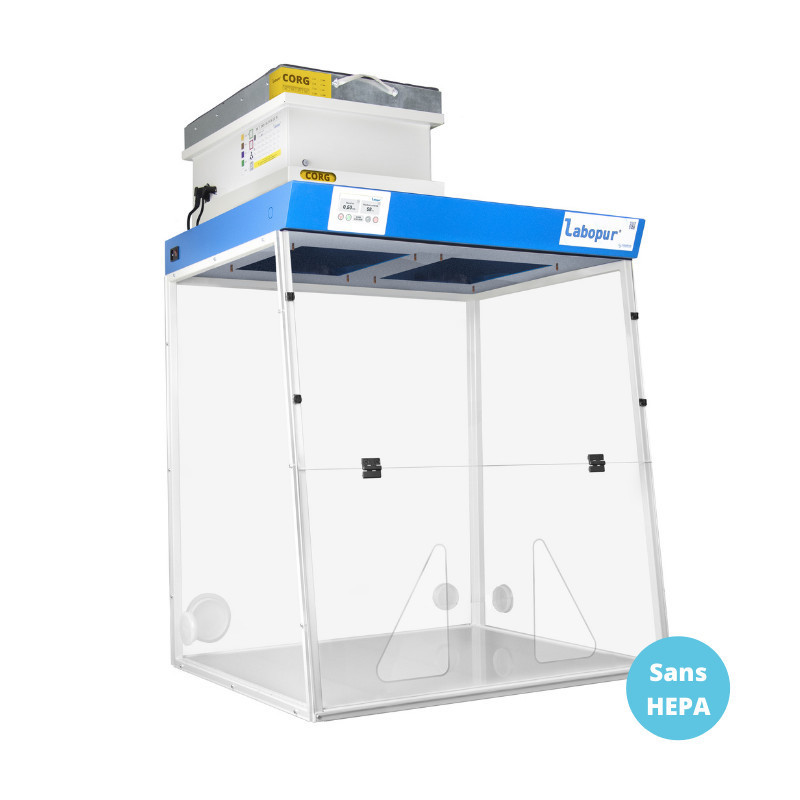

Laboratory
fume hood with a choice
of 1 or 2 filter chambers. Complies with CE standards and NF X 15-211 Class 1
. For handling flammable, corrosive, and toxic substances. The fume
hood is delivered ready for use, excluding the carbon and HEPA
filters.
PLEASE NOTE: The price does not include the REQUIRED vapor detector or the filters—Pricing depends on the type of vapor being treated
Compliance with NF X 15-211 Class 1
Average air velocity at the front (m/s) 0.4–0.6
Voltage (volts) 220–240
Airflow (m³/h) 170 Electrical power (watts) 10 Power supply access
covers 4
Fan sound power dB(A) (excluding airflow) 57.00 Hour
meter included Airflow
meter included
Guide to selected products included Sampling
port included Transparent rear
panel included
Optional melamine-faced countertop
Dimensions (HxWxD mm)
: - external: 1160x900x750
- internal: 935x845x700
Weight: 34 kg
Choose your access option:
two-hand access or trapeze
Select the HEPA filter option if you wish to add one of the following filters:
High-efficiency HEPA filter: for use in a cleanroom (2 kg) [vendu séparément]
Low-efficiency HEPA filter: for handling powders and liquids (2 kg) [vendu séparément]
These fume hoods must be equipped with two activated carbon filters [vendus séparément] per filter housing. HEPA filters are not required.
Download the technical data sheets at the bottom of the page for more information.
