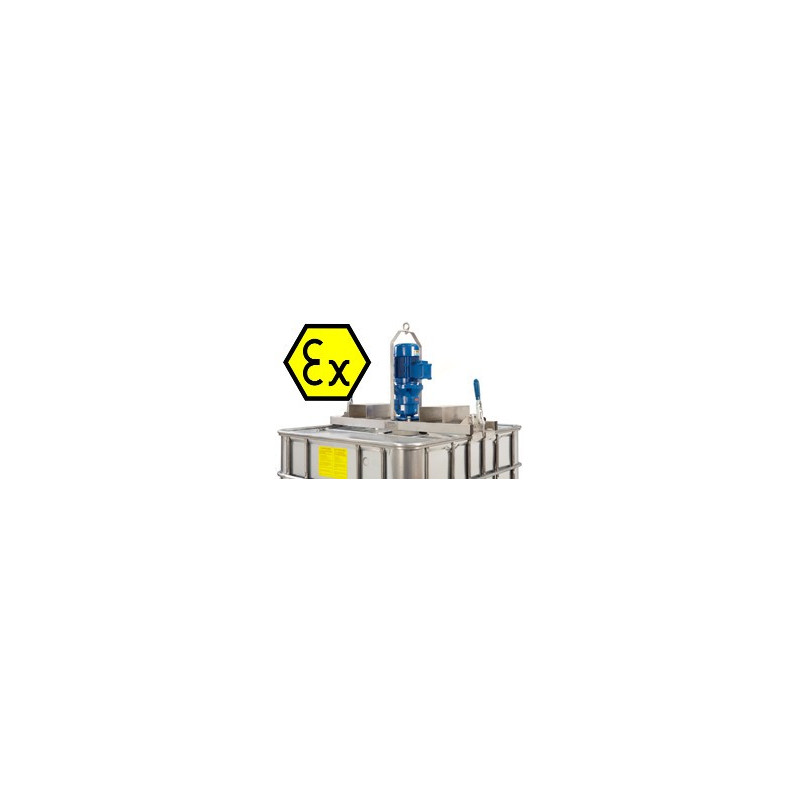

ATEX-Certified Agitator Mixer for 1,000-Liter IBC/GRV Tanks (Electric)

Choose your model based on the viscosity of the product to be mixed:

Rotational Speed: 236 revolutions per minute, 380V three-phase ATEX-certified
electric motors Retractable propeller and shaft with a diameter of 20 mm and a length of 875 mm, made of food-grade 316 stainless steel. When retracted, the propeller is compatible with a 150 mm diameter opening (the smallest possible top opening on most 1,000-liter tanks on the market)
. Agitation during drainage: YES
. Weight: 28–35 kg, depending on the model.

Safe installation and removal thanks to quick-release hooks that secure the agitator to the IBC frame. The ATEX model is supplied with an ATEX contactor (to be wired on site) to shut off the motor if the agitator frame becomes disengaged from the tank structure.
304 stainless steel frame with lifting ring

No pre-wiring is done at the factory. Required:
Direct-on-line (DOL) starter (not included) and its wiring
; wiring for the safety lock switch (included)
. A very detailed installation manual in French is included

Available options:

- Forklift handling module available as an
accessory - Hatch for adding powder during mixing
- Integrated port for adding liquid during agitation:
- Bottom-of-tank impeller on an extended shaft for agitation at the bottom of the tank at the end of the discharge cycle:
- Additional retractable impeller; please contact us to confirm feasibility based on viscosity

Made in England—1-year warranty
