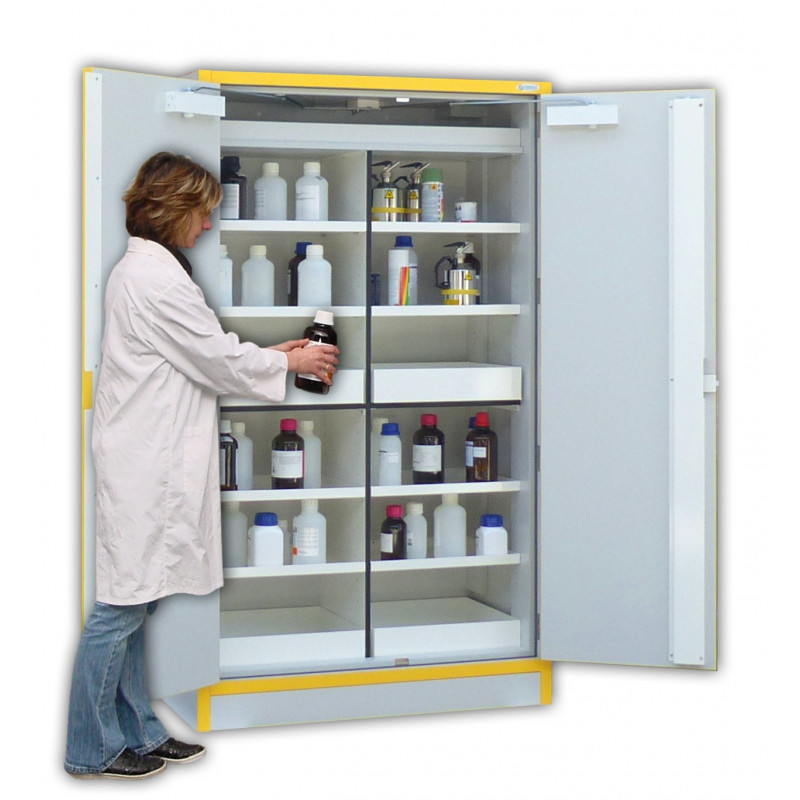

4-Compartment Multi-Hazard Safety Cabinets (Flammables, Acids, Bases, and Toxics) 30'

External dimensions: 1980x1115x550
mm Tall cabinet with 2 doors and 4 compartments,a storage capacity of 55 L
2 steel containment shelves per compartment, for a total
of 8 1 containment tray per compartment, for a total of 4 containment
trays Evenly distributed load per shelf: 30 kg
Empty weight: 252 kg

—Tested and certified for 30-minute fire resistance in accordance with EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
— (1) Tested and certified for 10 minutes in accordance with FM 6050 (Factory Mutual International).
- Standardized pictograms compliant with ISO 3864, NF X08.003, Directive 92/58/EEC, EN 14470-1 (04/2004), and FM specifications.


ADVANTAGES—30-minute fire resistance according to the ISO 834 standard curve.
—Base with cover for easy movement by pallet jack when empty, except for “under-counter” models.
- Self-closing cabinets with door counterweight and doors held open by fusible links that activate at 43°C (depending on the model).
- Many models available.
- Suitable for all types of chemicals commonly used in laboratories and industry
.- Separation by hazardous product categories in accordance with the Public Health Code and the recommendations of the French

National Institute for Health and Safety (I.N.R.S.)
PASSIVE SAFETY- Constructed from insulated panels offering high resistance to chemical exposure.
- Light gray RAL 7035 frame with RAL 1023 yellow-plated panels
.- Labeling with standardized symbols.
- Height-adjustable containment shelves in 32 mm increments
.- Removable containment tray at the bottom.


ACTIVE SAFETY- Ø 100 mm ventilation openings for potential connection.
- Self-closing doors with spring-assisted opening
.- System to hold doors open with automatic closure in case of fire
.- 3-point lock
.- Lock with spark-proof mechanism
.- Adjustable feet for leveling.

OPTIONS
—Additional shelf.
—Grating for the spill containment tray.
—Sliding spill containment drawer/tray.
—PVC protective covers.
—Ventilation or filtration units.
—Absorbent mats to be placed at the bottom of the spill containment tray
