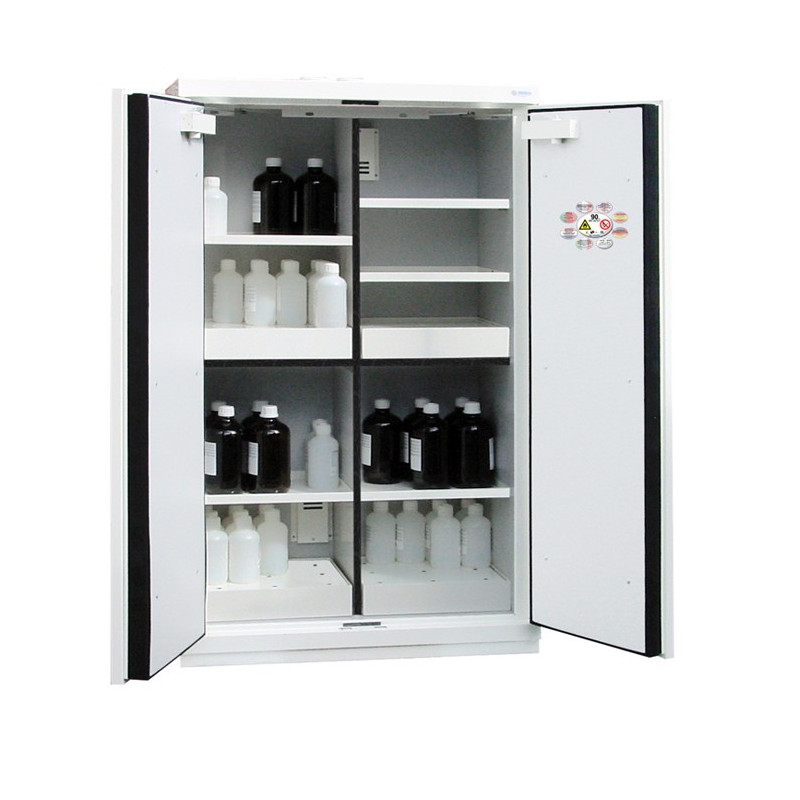

4-Compartment Multi-Hazard Safety Cabinets (Flammables, Acids, Bases, and Toxins) 90'

External dimensions: 1880
x 11355 x 615 mm Tall cabinet with 2 doors and 4 compartments witha storage capacity of 55 L
1 steel retention shelf per compartment, for a total
of 4 1 retention tray per compartment, for a total of 4 retention
trays 1 wire mesh deck per compartment, for a total of 4, to provide an additional level above the retention
tray Uniformper shelf: 30 kg
. Empty weight: 497 kg

Compliance

- Tested and certified to standards EN 14470-1 (04/2004) and EN 1363-1 (06/2000).
- Standardized pictograms compliant with ISO 3864, Directive 92/58/EEC, and EN 14470-1 (04-2004).
- Compliant with Articles R5132-66 and R5132-68 of the Public Health Code (multi-hazard models).

Advantages

- Fire resistance of 105 minutes according to the ISO 834 standard curve.
- Fire-tested and certified by an independent European laboratory.
- Separation by hazardous product categories in accordance with the Public Health Code and the recommendations of the I.N.R.S.

Passive Safety

- Double-walled construction: Exterior walls made of 12/10th steel, coated with white RAL 9010 epoxy paint; interior walls made of white RAL 9010 melamine.
- Thermal insulation panels between the walls to minimize thermal bridges.
- Removable spill tray at the bottom.
- Labeling with standardized symbols.
- Spill-containment shelves.
- Grounding connection point.

Active Safety

- Ventilation openings with a 100-mm-diameter vent outlet for potential connection.
- Ventilation ducts with a heat-sealable system to isolate the cabinet’s contents in the event of a fire.
- Thermally expanding door seals.
- Self-closing, lockable doors.
- Door hold-open system with thermoregulated automatic closure at 50°C.

Options

- Colored doors available; see the pages for the 7.90 Series cabinets: white RAL 9010 frame and shelf; yellow RAL 1023 door(s) - white RAL 9010 frame and shelf; red door(s) RAL 3000.
