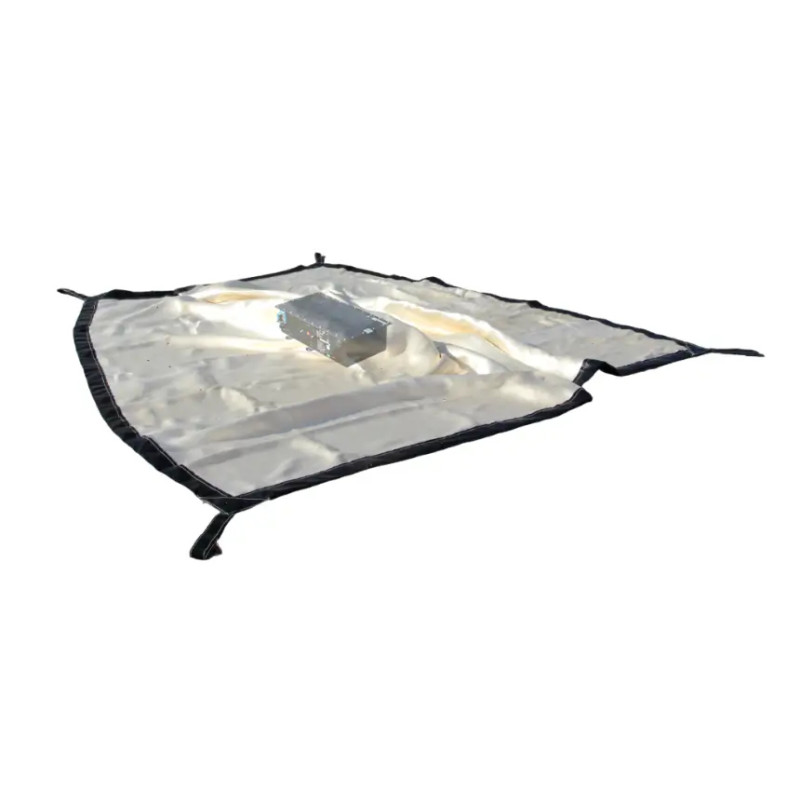

The VLITEX fire-resistant cover for open battery modules (Ultimate) was specifically designed to protect open battery modules with a capacity greater than 5 kWh. Thanks to the cover’s multilayer structure—which includes silica and HT glass fiber fabrics and additional coatings— the cover is ideal for use in areas where work is performed on open battery modules—for example, in auto repair shops, car dealerships, or in industrial settings—and provides reliable protection in these environments.
- Material: Multilayer silica and HT fiberglass fabric
- Coating: vermiculite/polymer coating
- Assembly: Fire-retardant sewing thread
- Temperature resistance: up to 1,600 °C / peak up to 2,500 °C
- Reusability: Single-use only
- Dimensions: 3.0 m x 4.0 m
- Weight: approximately 28 kg
Thanks to its high-temperature resistance and innovative combination of materials, the VLITEX fire blanket for open battery modules meets the highest safety standards and provides reliable protection in critical situations.
Description
Safety for open battery modules—targeted protection for specific applications
The VLITEX fire blanket for open battery modules was designed to provide appropriate fire protection for non-encapsulated battery components. Open modules are not protected by an enclosure, which means that the battery cells are unprotected and release significantly more energy in the event of a fire. This uncontrolled release poses an increased risk to people and surrounding equipment.
Thanks to a combination of multiple layers of materials—namely, a high-temperature-resistant silica fabric and an HT fiberglass fabric—it withstands extreme temperatures with peaks of up to 2,500 °C—even in the event of sudden thermal runaway.
During use, the fire blanket is placed over the open module as a precaution. If a fire breaks out, it quickly reduces smoke development and effectively blocks the flames. This keeps the fire localized—significantly better protecting surrounding components and people.
Typical Applications and Technical
Specifications The fire blanket is particularly well-suited for:
- Electric vehicle garages
- Laboratories and testing facilities
- Research institutes and universities
- Industrial facilities with open battery handling
With compact dimensions of 3.0 x 4.0 meters and a weight of approximately 28 kg, the blanket combines rapid deployment with robust protection—a well-designed solution for handling open battery systems.
