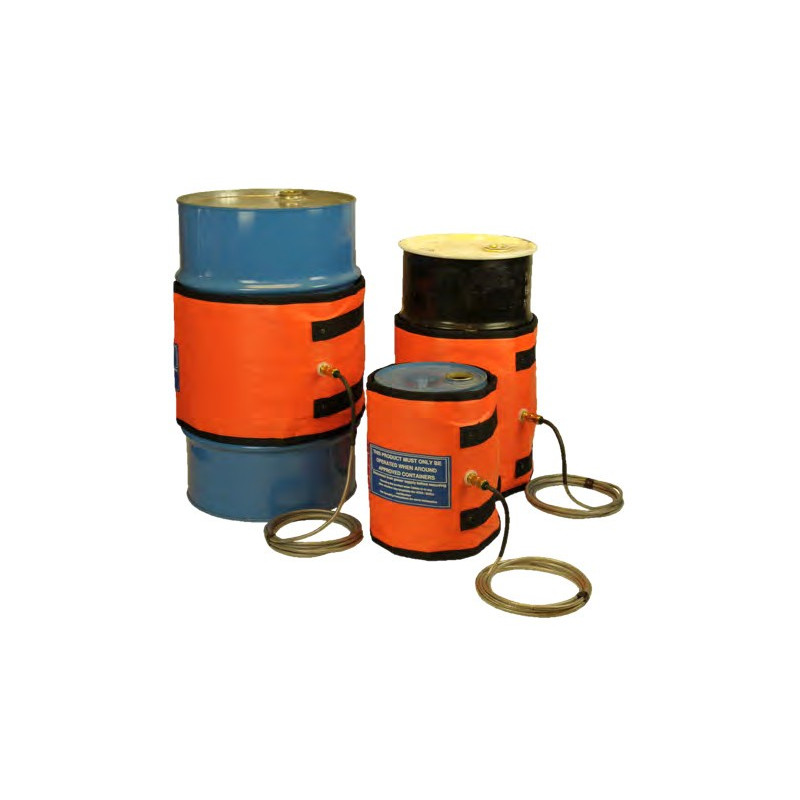

ATEX-Certified Heated Cover for 25-Liter Drums

Safe heating of 25-liter
steel and plastic drums. Suitable for use in explosive
atmospheres. Ideal for keeping contents from freezing

. Operates without a thermostat to maintain a temperature 40° above ambient temperature. Can be used with an optional thermostat (0–50°C) to be placed outside the ATEX zone.

These ATEX- and IECEx-certified heating blankets are based on innovative technology. They are ideal for gentle heating and freeze protection. For faster heating or to liquefy solids at a higher temperature, we recommend using an ATEX-certified induction heating base.

ATEX-Certified
Drum Heating Blanket Made of glass fabric coated with an elastomer/silicone blend and high-density fiberglass insulation. The heating element uses patented ATEX- and IECEx-certified (Zones 1 and 2) carbon-enriched
CTP-type semiconductor membrane technology.

Power: 90 watts, up to 0.4A
Supply voltage: 240 V 1-phase, 50/60 Hz AC
Class 2 device (double insulation)
Protection rating: IP 54

Overall length: 1,020 mm
Overall height: 400 mm
5-meter power cord made of PVC sheathed with galvanized

steel braiding Approvals:
Standards: EN 60079-0:2012, EN 60079-7:2007
EC Certificate: CML 13ATEX3018X
II 2 G D Ex e IIC T4 Gb Ex tb IIIC T135°C Db (Zones 1 and 2)
1-year warranty
