Suitable for use in Zone 1 and 2 explosive atmospheres; ATEX- and IECEx-certified

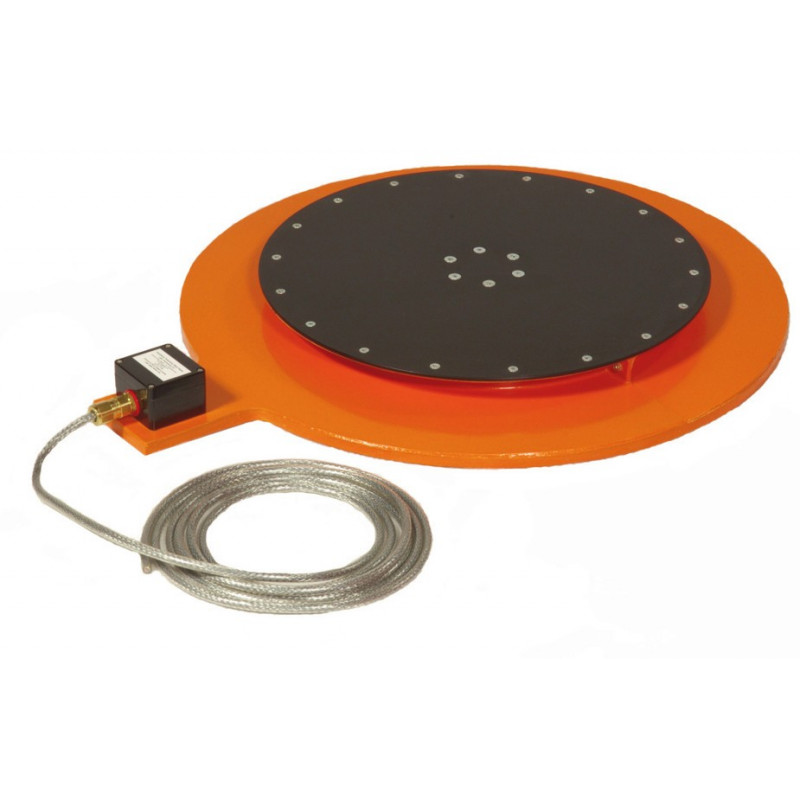

The Faratherm consists of an inductive coil encapsulated in glass-fiber-reinforced resin with a heating plate on top. It was developed using the same technology as the Thermosafe induction heater, which has proven its effectiveness and quality for over 20 years.
Powered by single-phase electricity, this unit heats drums and containers from below.
The Faratherm can be used in explosive zones 1 and 2. Thanks to its IP 66 rating, the Faratherm can operate in extreme conditions or where regular cleaning is required.
Since the plate is heated by induction, there are no heating elements. The maximum temperature is self-limiting. In most applications, it is not necessary to install additional control equipment.
Power: 500 watts, 7A
Supply voltage: 240 V 1-phase, 50/60 Hz AC
Class 2 device (double insulation), Weight: 45 kg
Protection rating: IP 66
Overall diameter: 887 mm
Heating plate diameter: 550 mm
Overall height: 59 mm
5-meter power cord made of PVC sheathed with galvanized
steel braiding Standards: EN 60079-0:2004, EN 60079-7:2003,
IEC 61241-0:2004, EN 61241-1:2004
EC Certificate:
Sira 07ATEX3034X
IECEx Certificate:
IECEx SIR 07.0017X
II 2 GD Ex e II T3 Ex etD A21 IP66 T200°C (Zones 1 & 2)
1-year
warranty
Power: 500 watts, 7A
Supply voltage: 240 V 1-phase, 50/60 Hz AC
Class 2 device (double insulation), Weight: 45 kg
Protection rating: IP 66
Overall diameter: 887 mm
Heating plate diameter: 550 mm
Overall height: 59 mm
5-meter power cord made of PVC sheathed with galvanized
steel braiding Standards: EN 60079-0:2004, EN 60079-7:2003,
IEC 61241-0:2004, EN 61241-1:2004
EC Certificate:
Sira 07ATEX3034X
IECEx Certificate:
IECEx SIR 07.0017X
II 2 GD Ex e II T3 Ex etD A21 IP66 T200°C (Zones 1 & 2)
1-year
warranty
