Heating of metal drums with a maximum capacity of 200 liters
; suitable for use in explosive
atmospheres; quick
installation; can be used alone or in conjunction with an ATEX-certified
heating base; it allows for the heating of viscous products such as wax, tar, bitumen, gelatin, organic acids much more safely and quickly than conventional systems (heating belts and ovens).
ATEX-certified

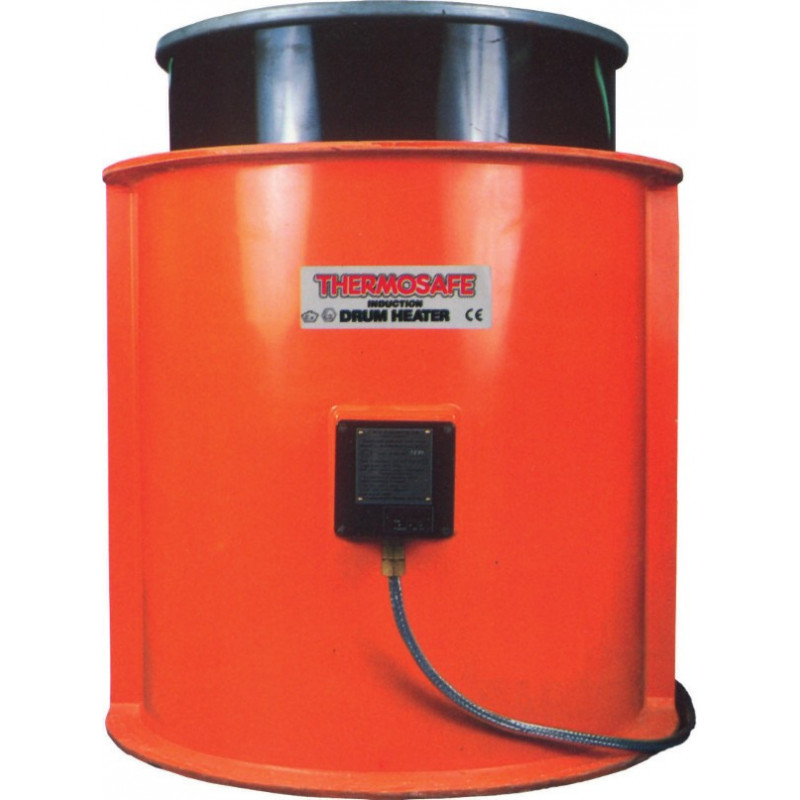

induction drum heater Consists of an induction coil fully encased in a fiberglass-reinforced epoxy/polyester resin jacket, providing excellent resistance to chemical corrosion. The induction coil generates a magnetic field, the energy from which is transferred to the metal wall of the drum, causing it to heat up.
Suitable for use in explosive zones 1 and 2; ATEX and IECEx certified.
Power: 2,250 watts, Weight: 48 kg
Start-up current: 21 A/2,750 W, operating current: 18 A/2,250 W (note: inductive power factor)
Supply voltage: 240 V, single-phase
Class 2 device (double electrical insulation)
Protection rating: IP 66
Outer diameter: 743 mm, Inner diameter: 613 mm Height: 711 mm
5-meter power cable made of PVC sheathed with galvanized
steel braiding Approvals:
Standards: EN 60079-0:2004, EN 60079-7:2003,
IEC 61241-0:2004, EN 61241-1:2004
EC Certificate:
Sira 06ATEX0166X
IECEx Certificate:
IECEx BAS 05.0081X
Suitable for use in explosive atmospheres of class EEx e II 170°C
T3 (Zones 1 & 2)
induction drum heater Consists of an induction coil fully encased in a fiberglass-reinforced epoxy/polyester resin jacket, providing excellent resistance to chemical corrosion. The induction coil generates a magnetic field, the energy from which is transferred to the metal wall of the drum, causing it to heat up.
Suitable for use in explosive zones 1 and 2; ATEX and IECEx certified.
Power: 2,250 watts, Weight: 48 kg
Start-up current: 21 A/2,750 W, operating current: 18 A/2,250 W (note: inductive power factor)
Supply voltage: 240 V, single-phase
Class 2 device (double electrical insulation)
Protection rating: IP 66
Outer diameter: 743 mm, Inner diameter: 613 mm Height: 711 mm
5-meter power cable made of PVC sheathed with galvanized
steel braiding Approvals:
Standards: EN 60079-0:2004, EN 60079-7:2003,
IEC 61241-0:2004, EN 61241-1:2004
EC Certificate:
Sira 06ATEX0166X
IECEx Certificate:
IECEx BAS 05.0081X
Suitable for use in explosive atmospheres of class EEx e II 170°C
T3 (Zones 1 & 2)
