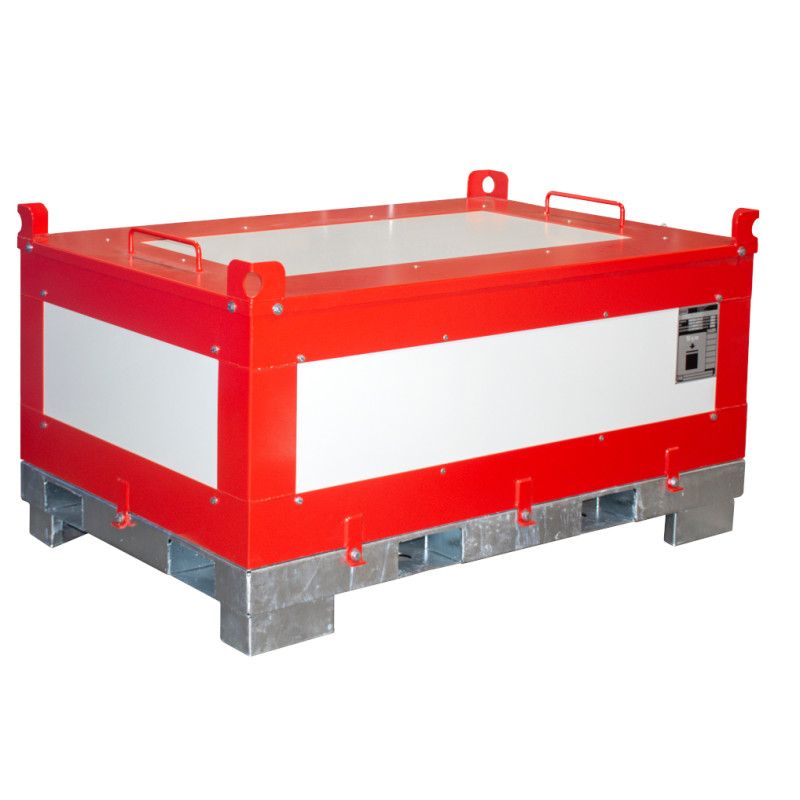

400-liter container for transporting a critically damaged lithium battery, P911
LIP-F400-1
Allows for the transport of damaged lithium batteries in accordance with ADR Packing Instruction P911:
applies to damaged or defective cells and batteries with UN Numbers 3090, 3091, 3480, 3481, 3551, and 3552, which may rapidly disintegrate, react dangerously, produce a flame or a dangerous release of heat, or emit toxic, corrosive, or flammable gases or vapors under normal conditions of transport.
Suitable for UN3480 batteries; packaging instruction P911
; maximum battery capacity 14.7 kWh; UN 4A/X650
certification; maximum gross weight 650 kg - Empty weight: 376 kg
; External dimensions: 1590 x 1040 x 845; Internal dimensions: 1290 x 760 x 405 - Stackable; supports 1,950 kgs
; sturdy hot-dip galvanized metal frame; 4 access
points; ground clearance: 100 mm
; spill tray with fire-retardant liner to collect electrolyte
; 6 tie-down points, 3 tie-down straps included
Steel lid with fire-retardant
panels 2 handles for removing/lifting the lid
4 crane lifting eyes for removing/lift the lid
; lid bolted to the base
frame; positioning
aid; available with various RAL-colored lacquer finishes
LIP-F400-1
