1H2/X295/S
1A1/Y1.4/150/
1A2/Y150/S
4H2V/X36/S
|
4GV/X68/S
1A2T/Y350/S
1H1/Y1.4/100
4C1/Y300/S
|
 |
Material: 304
stainless steel. Suitable for packaging instruction LP906: damaged or defective batteries, UN Nos. 3090, 3091, 3480, and 3481, which are likely to disintegrate rapidly, react dangerously, produce a flame or a dangerous release of heat, or emit toxic, corrosive, or flammable gases or vapors under normal conditions of transport
Validated by fire test NMC battery 111.80 kW·h
External dimensions: 3175 x 2400 x 1349
mm Internal dimensions: 2670 x 1900 x 590 mm
Battery compartment: 2,470 x 1,700 x 490 mm
Free battery volume: 2,993 L
Curb weight: 2,552 kg
Maximum allowable net weight (including batteries): 800 kg Maximum gross
weight: 3,960 kg
Operating temperature range: -20° to 80°
Storage temperature range: 15° to 30°
For orders of more than 2 crates, please contact us for an official quote.
LP-BOX2 X1E
32 other products in the same category:

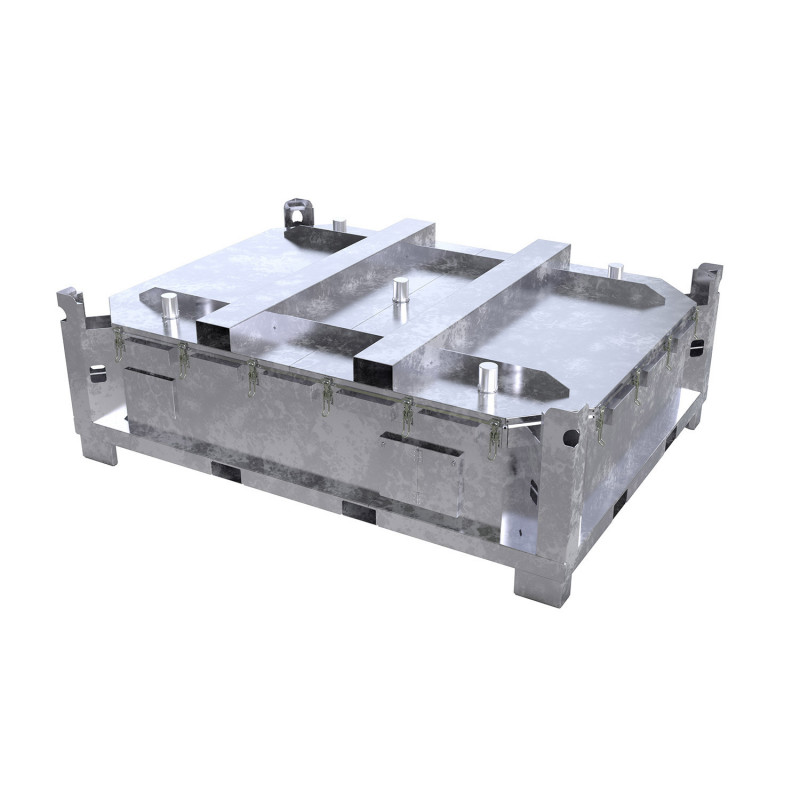

Large ADR transport packaging for damaged LP906 lithium batteries with PYROBUBBLE system (fire suppression and thermal insulation)
. UN 50A/X certified
