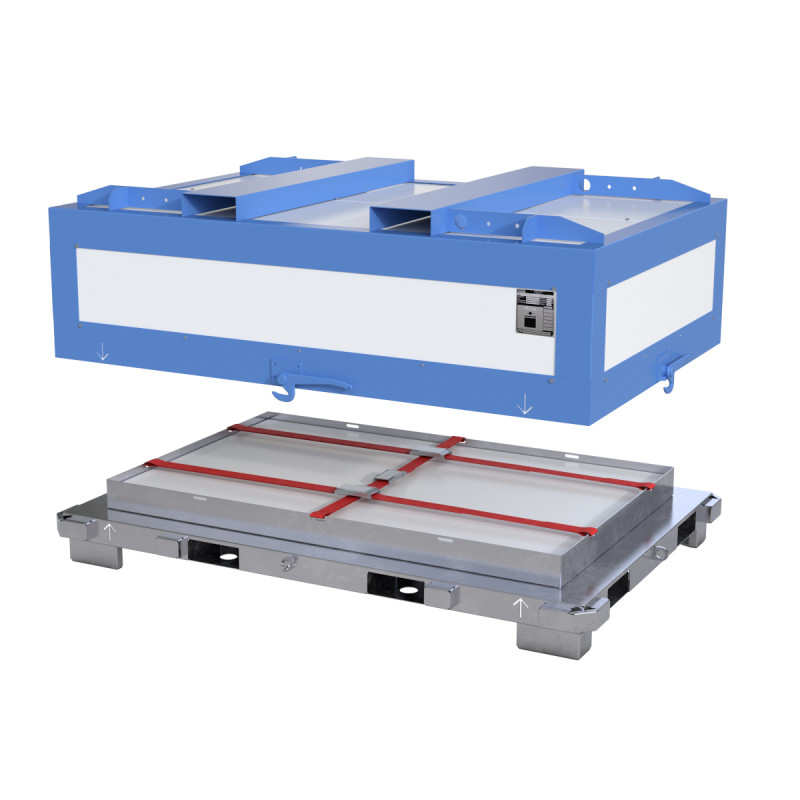

770-liter Case for Transporting a Critically Damaged Lithium Battery LP906
LIP-F830
Allows for the transport of damaged lithium batteries in accordance with ADR packaging instruction LP906:
applies to damaged or defective batteries with UN Nos. 3090, 3091, 3480, 3481, 3551, and 3552, which may rapidly disintegrate, react dangerously, produce a flame or dangerous heat release, or emit toxic, corrosive, or flammable gases or vapors under normal conditions of transport.
Suitable for UN3090, 3091, 3480, 3481, 3551, and 3552; packing instruction LP906
. Number of batteries: 1 to 20, for a maximum total power of 42.2 kWh. UN approval 50A/X/.../2245/1195
Max. gross weight: 1,195 kg – Empty weight: 545 kg
External dimensions: 2,180 x 1,480 x 845 mm Internal dimensions: 1,840 x 1,160 x 355 mm - Not stackable
Sturdy hot-dip galvanized metal frame 4 access
points Ground clearance: 100 mm
Spill containment tray with fire-retardant lining to collect electrolyte
10 tie-down points, 3 tie-down straps included
Steel lid with fire-retardant
panels 2 fork pockets for removing/lifting the lid
4 crane lifting eyes for removing/lift the cover
Lever latches to secure the cover to the base
; positioning
aid Available with various RAL-colored lacquer finishes
LIP-F830
