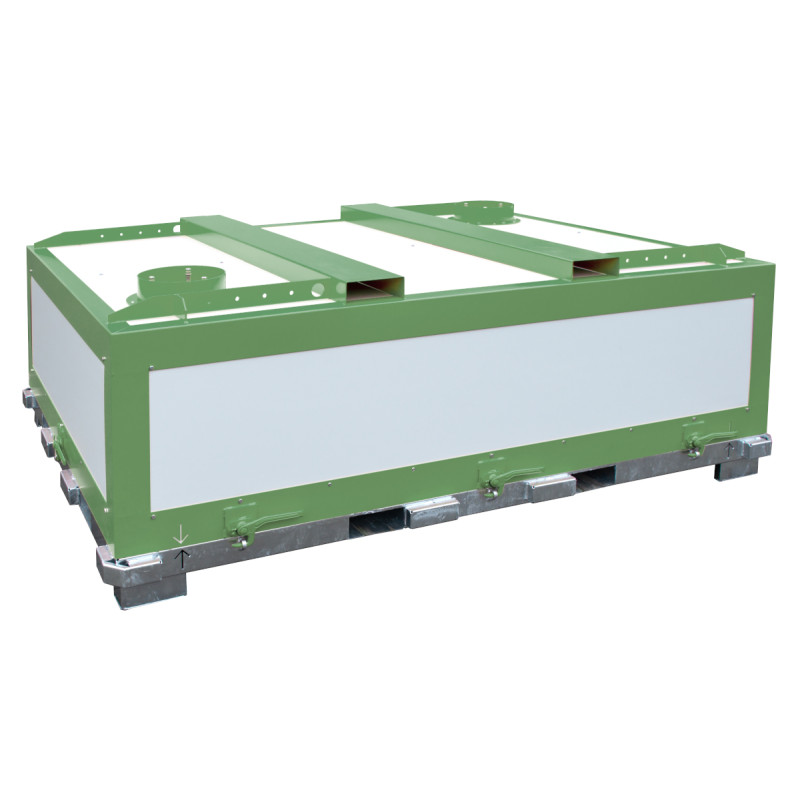

2,800-liter container for transporting a critically damaged lithium battery, LP906
LIP-F2800
Allows for the transport of damaged lithium batteries in accordance with ADR packaging instruction LP906:
applies to damaged or defective batteries with UN Nos. 3090, 3091, 3480, 3481, 3551, and 3552, which may rapidly disintegrate, react dangerously, produce a flame or dangerous heat release, or emit toxic, corrosive, or flammable gases or vapors under normal conditions of transport.
Suitable for UN3090, 3091, 3480, 3481, 3551, and 3552 (packing instruction LP906
). Number of batteries: 1 to 72, for a maximum total power of 144.5 kWh. UN approval 50A/X/.../0/1947
; Max. gross weight: 1,947 kg; Empty weight: 980 kg
; External dimensions: 2,880 x 2,080 x 1,040 mm; Internal dimensions: 2,540 x 1,750 x 545 mm - Not stackable
; sturdy hot-dip galvanized metal frame; 4 access
points; 2 adjustable vacuum valves - Ground clearance: 100 mm
; spill tray with fire-retardant lining to collect electrolyte
; 18 tie-down points, 4 tie-down straps included
Steel lid with fire-retardant
panels 2 fork pockets for removing/lifting the lid
4 crane lifting eyes for removing/lift the lid
Lever latches to secure the lid to the base
Positioning aid - Anti-collision
flanges Available with various RAL-colored lacquer finishes
LIP-F2800
