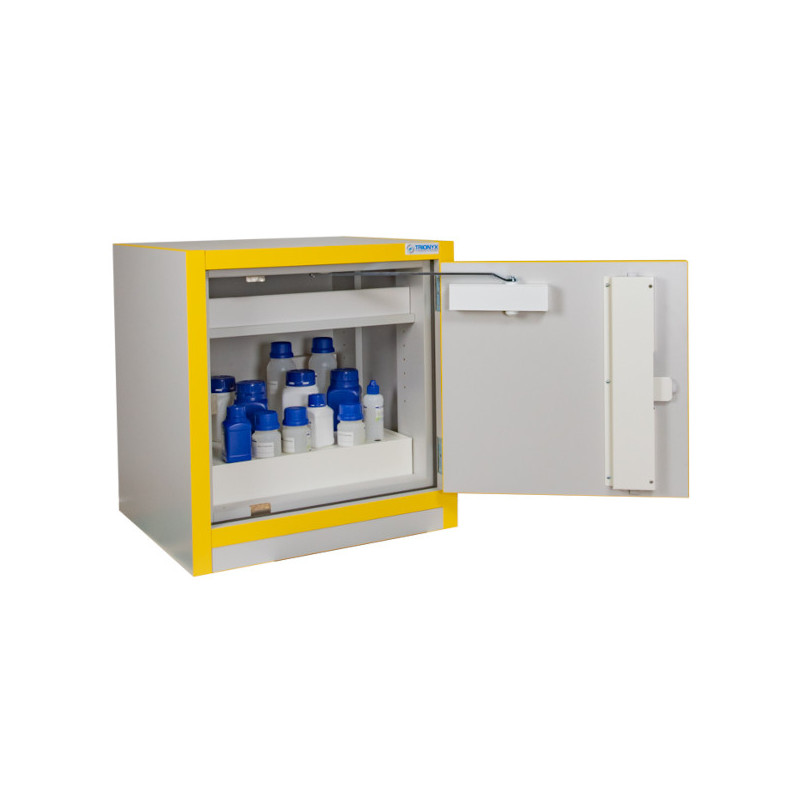

• Constructed from insulated panels, highly resistant to chemical exposure.
• Light gray frame with yellow-plated panels.
• Tested and certified to standards EN 14470-1, EN 1363-1, and FM 6050.
• 30-minute fire resistance according to the ISO 834 standard curve.
• Standardized pictograms compliant with ISO 3864, NF X08.003, Directive 92/58/EEC, EN 14470-1, and FM specifications.
• System to hold doors open with automatic closure in case of fire (heat-activated fusible link that
triggers at 43°C). Key-lockable doors.
• DN100 connection flange positioned above the cabinet for mechanical ventilation (optional).
• Adjustable feet for leveling.
• Removable steel spill tray on the floor (grating optional).
• Grounding connection point.
STORAGE CAPACITY: 30
L EMPTY WEIGHT: 64 kg
Made in France
| Ref . |
Description |
External Dimensions HxWxD in mm |
Storage Capacity Liters |
Supplied with | Maximum load per shelf in kg |
Empty weight in kg | ||
| Steel spill containment shelves | Steel spill tray | Steel grating for tray | ||||||
| ASCF30-30 | 1-door under-counter cabinet | 635x630x630 | 30 | - | 1x20L | 1 | 30 | 64 |
| ASCF30-60 | 2-door under-counter cabinet | 635x1115x630 | 60 | - | 1x41L | 1 | 50 | 108 |
| ASCF30-130 | Tall Cabinet with 1 Door | 1980x605x550 | 130 | 3x6L | 1x20L | Option | 30 | 117 |
| ASCF30-250 | Tall 2-door cabinet | 1980 x 1115 x 550 | 250 | 3x12L | 1x41L | option | 50 | 210 |
| ASCF30-113 | 2-Door Countertop Cabinet | 1198x1092x537 | 113 | 1x9L | 1x30L | option | 50 | 170 |
