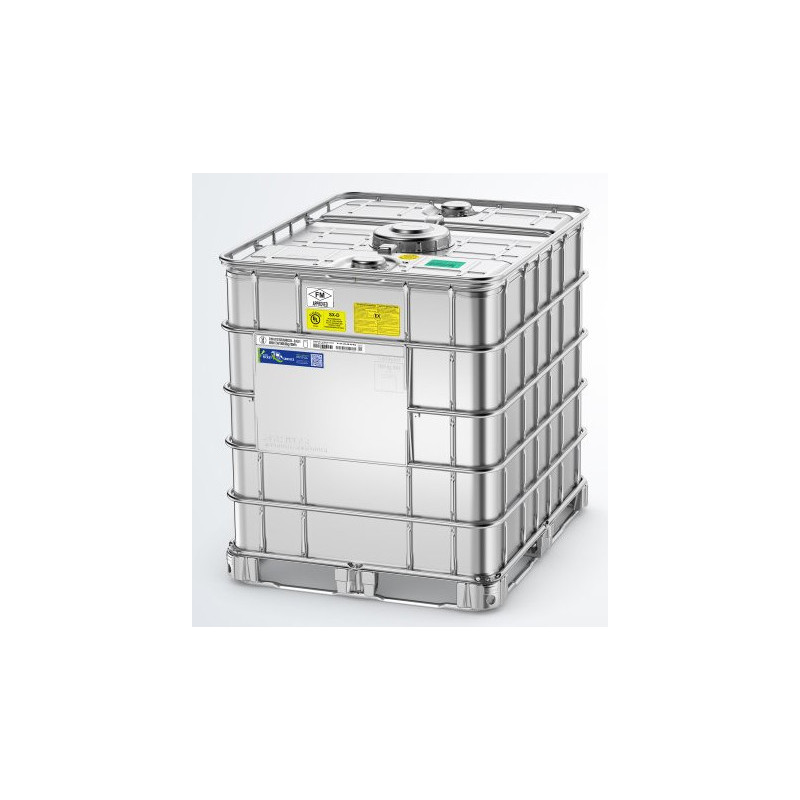

1,000-liter IBC Tank - UN Non-Meltable IBC - ATEX Double-Walled - Lubrizol Decree

For the transport and storage of highly flammable products—Lubrizol Decree—Integrated
containment: A high-density polyethylene (HDPE) tank surrounded by a leak-proof metal enclosure. Exempt from the requirement for storage on a spill containment
tray. For use in electrostatic protection in EX Zones 1 and 2 per IEC TS 60079-32-1 and TRGS 727

With DN150 and DIP tube with EPDM gasket; no drain valve at the bottom

Closed metal pallet with 4 entry
points

Technical data:
Dimensions in mm:
length 1200 ^±5.0
, width 1000 ^±5.0
, height 1160 ^±5.0
Total weight in kg: 78
Nominal volume in L: 1000
Volume to overflow in L: 1060

UN Approval No. 31HA1/Y/MM YY/D/BAM15072-/4056/2030/1050L/75KG/100KPA

• The double-wall structure ensures optimal safety and provides effective leak protection even under extreme conditions
• First composite IBC to earn the FM APPROVED designation
• Fire resistance tested and confirmed through a sprinkler test conducted by FM Global and Underwriters Laboratories
• Approved for products with a flash point ≥ 37.8 °C / 100 °F according to FM Test 6020
• Suitable for transporting combustible and flammable liquids (when stored in accordance with NFPA 30: combustible liquids only)
• Discharge is via a dip tube and/or a pump system
• For use in Ex Zones 1 and 2
