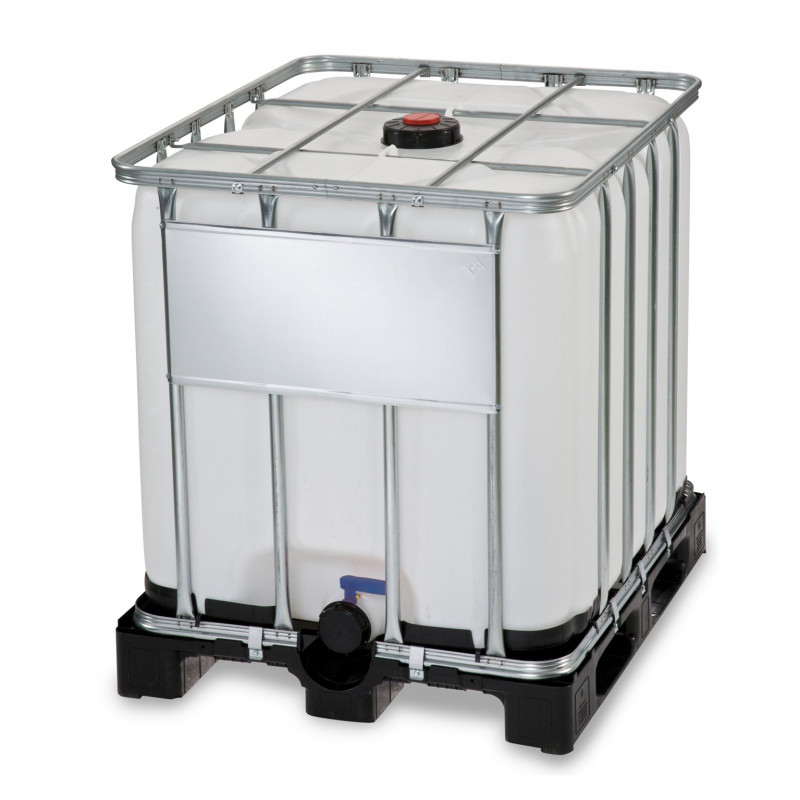

1,000-Liter Food-Grade IBC Tank, Opaque Plastic Tank

Technical data:
Dimensions in mm:
length 1200 ^±5.0
, width 1000 ^±5.0
, height 1170 ^±5.0
Total weight in kg: 51.1 ^±6.0
Nominal volume in L: 1000
Volume to overflow in L: 1060

Composition:
Outer shell: - RIGIDEX or
LUPOLEN HDPE material - Weight in kg: 10.5
- Filling port: - DN 150 filling port with S240x12 thread -
black DN 225 cover with S240x12 thread -
foam
gasket

Drainage:
- Interchangeable DN50 valve with S60x6
thread- PCP piston seal -
blue HDPE valve handle -
VITON handle seal -
HDPE tamper-evident clip -

heat-sealed aluminum cover - sealable valve cap with S60x6
thread- valve cap gasket made of HDPE foam

Drainage accessory:
DN 50 drain spout with S60x6 internal and external threads, attached to the IBC.

Metal frame: Double-sided galvanized steel tube frame secured with clamps
; double-sided galvanized steel tube cross-brace secured with clamps
; frame/pallet assembly secured with clamps
. Weight in kg: 23.2

Identification:
1 identification plate, 722 x 350 mm, galvanized on both sides, screwed to the front;
weight in kg: 1.1

Pallet:
1200x1000 plastic pallet, 4 entry
points; weight in kg: 15.1

Delivery:
2 IBCs stacked and strapped; IBCs ready for filling.

Specification: 10-clamp version

Stacking:
2 high by 1 wide for density ≤ 1.2
; 1 high by 1 wide for density ≥ 1.2
