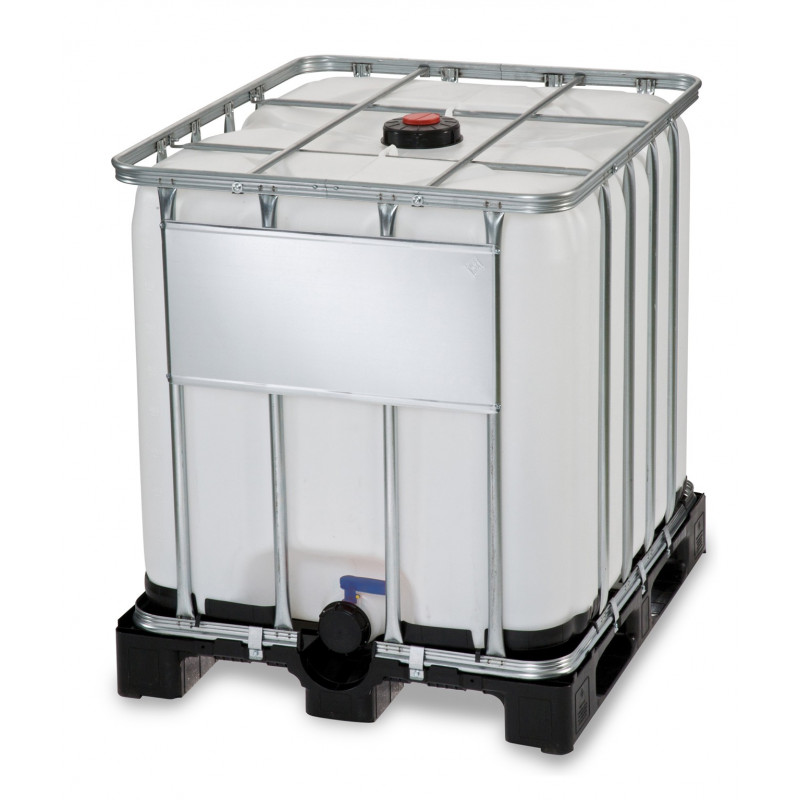

1,000-Liter UN-Certified IBC Tank, Food-Grade

Technical specifications:
Dimensions in mm:
length 1200 ^±5.0
, width 1000 ^±5.0
, height 1163 ^±5.0
Total weight in kg: 53.8 ^±10.0
Nominal volume in L: 1000
Volume to overflow in L: 1060

Composition:
Outer container: - RIGIDEX or
LUPOLEN HDPE material - Weight in kg: 16.5
- Filling port: - DN 150 filling port with S160x7 thread -
black DN 150 cover with S160x7 thread -
445x7mm EPDM-grade foam gasket

Drain
: - DN50 fixed valve with S60x6
thread- PCP piston seal -
blue HDPE valve handle -

PCP handle seal - HDPE tamper-evident clip -

heat-sealed aluminum cover - sealable valve cap with S60x6
thread- Valve cap gasket made of HDPE foam

Drainage accessory:
DN 50 drain spout with S60x6 internal and external threads, attached to the IBC.

Metal Frame: Double-sided galvanized steel tube frame secured with clamps
; double-sided galvanized steel tube crossbrace secured with clamps
; frame/pallet assembly secured with clamps
. Weight in kg: 22.2

Identification:
2 identification plates, 722x350mm, galvanized on both sides, screwed in place at the front and rear.
Weight in kg: 1.1 (x 2)

Pallet:
1200x1000 plastic pallet, 4 entry
points; weight in kg: 15.1

Delivery:
2 IBCs stacked and strapped; IBCs ready for filling.

Stacking:
2 high by 1 wide for density ≤ 1.2
; 1 high by 1 wide for density ≥ 1.2
