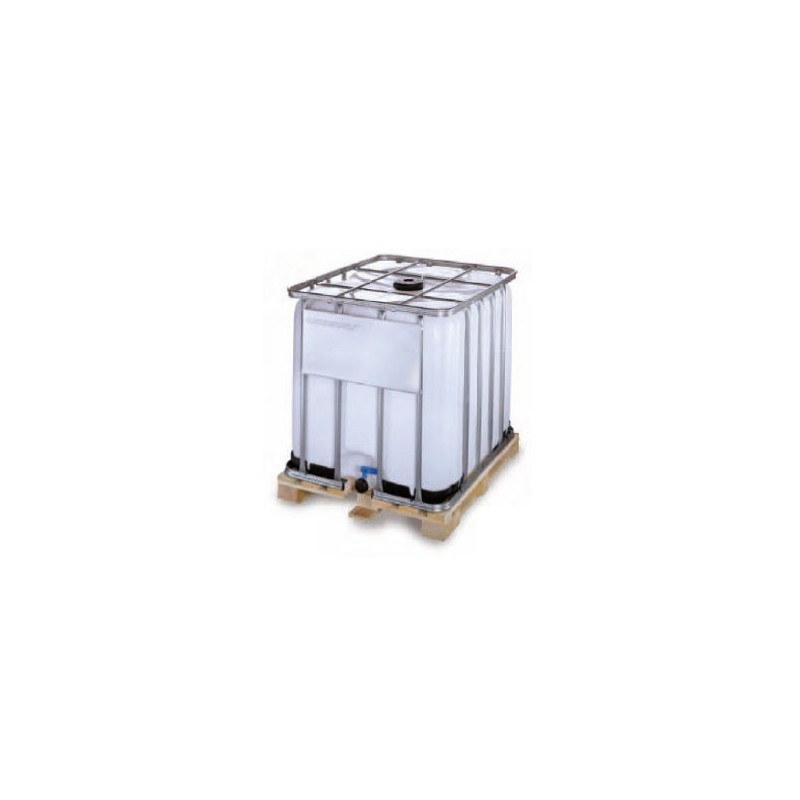

1,000-Liter Food-Grade IBC on a Wooden Pallet

Technical data:
Dimensions in mm:
length 1200 ^±5.0
, width 1000 ^±5.0
, height 1163 ±5^.0
Total weight in kg: 64 ^±10.0
Nominal volume in liters: 1000
Volume to overflow in liters: 1060

Composition:
Outer container: - RIGIDEX
HM4560UA high-density polyethylene (HDPE) - Weight in kg: 17.2 -
Filling port: - DN 150 filling port with S160x7 thread -
black DN 150 cover with S160x7 thread -
EPDM foam gasket 445x7

Drain
: - interchangeable DN50 valve with S60x6
thread- PCP piston seal -
Blue HDPE valve handle -
Viton handle seal -
HDPE tamper-evident clip -

Heat-sealed aluminum cover - Sealable valve cap with S60x6
thread- HDPE foam valve cap gasket

Drainage accessory:
DN 50 drain spout with S60x6 internal and external threads, attached to the IBC.

Metal frame: Double-sided galvanized steel tube frame secured with clamps
; double-sided galvanized steel tube cross brace secured with clamps
; frame/pallet assembly secured with clamps
; weight in kg: 22.2

Identification:
2 identification plates, 722x350 mm, galvanized on both sides, screwed in place at the front and rear
; weight in kg: 1.1x2

Pallet:
ISPM 15-treated wooden nestable pallet, 1200x1000, 4 entry
points; weight in kg: 22.5

Delivery:
2 IBCs stacked and strapped; IBCs ready for filling.

Stacking:
2 high by 1 wide for density ≤ 1.2
; 1 high by 1 wide for density ≥ 1.2
